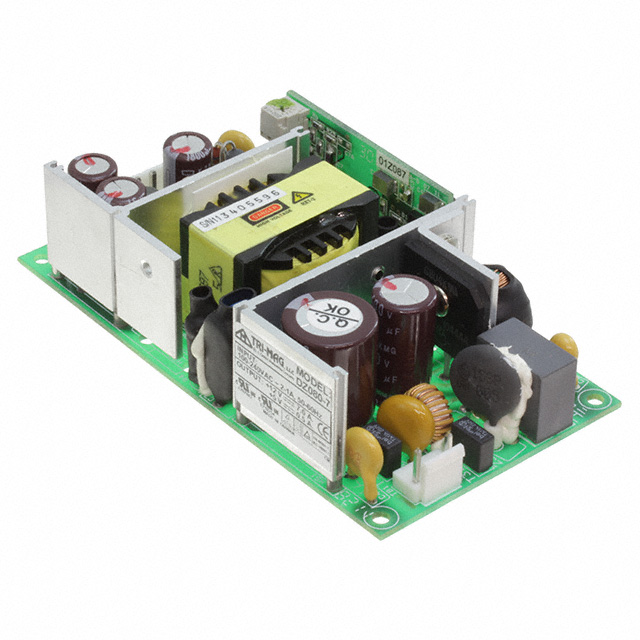

DZ080-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 5V 85W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 5V 85W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 5V 12V 24V 80W

Part	Applications	Features	Voltage - Output 2	Current - Output 3	Current - Output 1	Current - Output 2	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 3	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Max]	Type	Power (Watts)	Mounting Type
Tri-Mag, LLC DZ080-11	ITE (Commercial)	Universal Input	12 V	2 A	6 A	500 mA	3	90 VAC	264 VAC	24 V	63.5 mm	2.5 in	4.5 in	1.18 in	30 mm	114.3 mm	5 V	70 °C	Open Frame	80 W	Chassis Mount
Tri-Mag, LLC DZ080-3	ITE (Commercial)	Universal Input	12 V		6 A	4 A	2	90 VAC	264 VAC		63.5 mm	2.5 in	4.5 in	1.18 in	30 mm	114.3 mm	5 V	70 °C	Open Frame	85 W	Chassis Mount
Tri-Mag, LLC DZ080-7	ITE (Commercial)	Universal Input	5 V			500 mA	2	90 VAC	264 VAC		63.5 mm	2.5 in	4.5 in	1.18 in	30 mm	114.3 mm	12 V	70 °C	Open Frame	85 W	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 54.34

General part information

Open Frame AC DC Converters 2 Output 12V 5V 90 ~ 264 VAC Input
