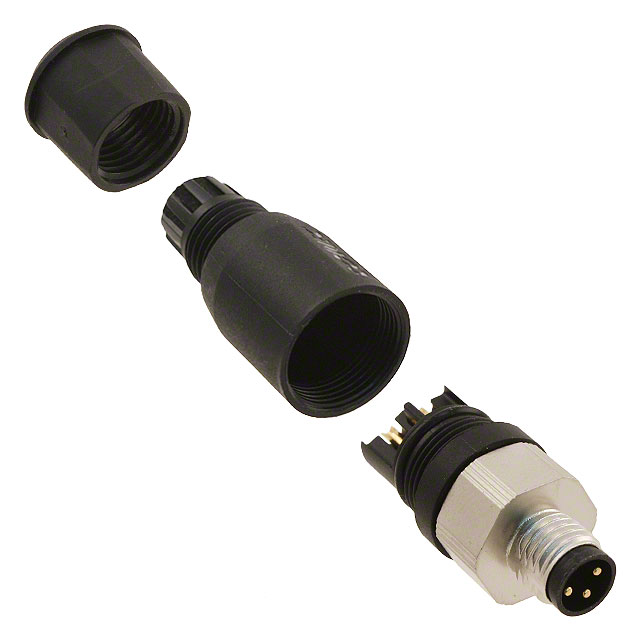

42-00005
ActiveAmphenol CONEC
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
42-00005
ActiveAmphenol CONEC
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 42-00005 |
|---|---|
| Backshell Material, Plating | Nylon 6, Polyamide (PA6), Glass Filled |
| Cable Opening [custom] | 0.217 in, 0.157 in |
| Cable Opening [custom] | 5.5 mm, 4 mm |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 3 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA6), Nylon 6, Glass Filled |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M8-3 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.60 | |
| 10 | $ 12.05 | |||
| 25 | $ 11.59 | |||
| 50 | $ 11.13 | |||
| 100 | $ 10.51 | |||
| 250 | $ 9.58 | |||
| 500 | $ 8.96 | |||
| 1000 | $ 8.22 | |||
Description
General part information
42-0000 Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
