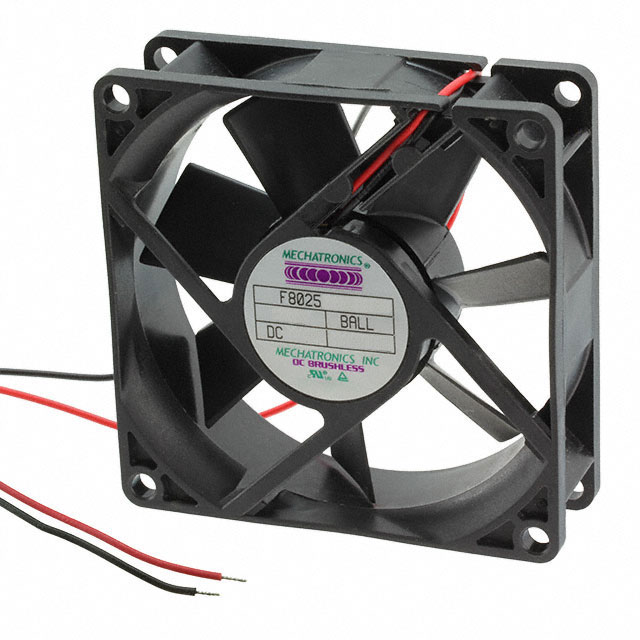

F8025X12B-FHR
ActiveMechatronics Fan Group
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
F8025X12B-FHR
ActiveMechatronics Fan Group
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F8025X12B-FHR | F8025 Series |
|---|---|---|
| Air Flow | 53 CFM | 25 - 53 CFM |
| Air Flow | 1.48 mł/min | 0.7 - 1.48 mł/min |
| Approval Agency | CE, cUL, TUV, UL | CE, cUL, TUV, UL |
| Bearing Type | Ball | Ball, Sleeve |
| Current Rating (Amps) | 480 mA | 0.09 - 480 mA |
| Fan Type | Tubeaxial | Tubeaxial |
| Features | Thermal Overload Protector (TOP) | Speed Sensor (Tach), Thermal Overload Protector (TOP), Locked Rotor Protection, Auto Restart, Locked Rotor Sensor, Thermistor, Alarm Sensor, Conformal Coating, PWM Control |
| Ingress Protection | - | IP57 - Dust Protected, Waterproof |
| Material - Blade | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Noise | 39 dB(A) | 20 - 39 dB |
| RPM | 4200 RPM | 1500 - 4200 RPM |
| Size / Dimension [x] | 80 mm | 80 mm |
| Size / Dimension [y] | 80 mm | 80 mm |
| Static Pressure | 0.26 in H2O | 0.05 - 0.26 in H2O |
| Static Pressure | 64.8 Pa | 12.4 - 64.8 Pa |
| Termination | 2 Wire Leads | 3 Wire Leads, 2 Wire Leads, 4 Wire Leads |
| Voltage - Rated | 12 VDC | 5 - 24 VDC |
| Weight | 0.182 lb | 0.174 - 0.182 lb |
| Weight | 82.55 g | 78.93 - 82.55 g |
| Width [y] | 25 mm | 25 mm |
F8025 Series
FAN AXIAL 80X25MM 24VDC WIRE
| Part | Termination | Current Rating (Amps) | Static Pressure | Static Pressure | Material - Blade | RPM | Noise | Weight | Weight | Air Flow | Air Flow | Bearing Type | Approval Agency | Features | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Width [y] | Fan Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group F8025E24B1-FHR | 3 Wire Leads | 140 mA | 0.21 in H2O | 52.3 Pa | Polybutylene Terephthalate (PBT) | 3600 RPM | 35 dB | 0.182 lb | 82.55 g | 1.29 mł/min | 46 CFM | Ball | CE, cUL, TUV, UL | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 24 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025X12B-FHR-EM | 2 Wire Leads | 480 mA | 0.26 in H2O | 64.8 Pa | Polybutylene Terephthalate (PBT) | 4200 RPM | 39 dB(A) | 0.182 lb | 82.55 g | 1.48 mł/min | 53 CFM | Ball | CE, cUL, TUV, UL | Thermal Overload Protector (TOP) | 12 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | IP57 - Dust Protected, Waterproof |
Mechatronics Fan Group F8025X24B-FSR | 2 Wire Leads | 0.26 A | 0.18 in H2O | 44.8 Pa | Polybutylene Terephthalate (PBT) | 3200 RPM | 35 dB | 0.174 lb | 78.93 g | 1.43 mł/min | 51 CFM | Ball | CE, cUL, TUV, UL | Auto Restart, Locked Rotor Protection | 24 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025X24B2-FSR | 3 Wire Leads | 0.26 A | 0.18 in H2O | 44.8 Pa | Polybutylene Terephthalate (PBT) | 3200 RPM | 35 dB | 0.174 lb | 78.93 g | 1.43 mł/min | 51 CFM | Ball | CE, cUL, TUV, UL | Auto Restart, Locked Rotor Sensor | 24 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025M12B3-FSR | 2 Wire Leads | 120 mA | 0.09 in H2O | 22.4 Pa | Polybutylene Terephthalate (PBT) | 2100 RPM | 29 dB(A) | 0.174 lb | 78.93 g | 0.952 m³/min | 34 CFM | Ball | CE, cUL, TUV, UL | Auto Restart, Locked Rotor Protection, Thermistor | 12 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025X12B2-FHR | 3 Wire Leads | 480 mA | 0.26 in H2O | 64.8 Pa | Polybutylene Terephthalate (PBT) | 4200 RPM | 39 dB(A) | 0.182 lb | 82.55 g | 1.48 mł/min | 53 CFM | Ball | CE, cUL, TUV, UL | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 12 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025H12B2-FHR | 3 Wire Leads | 0.145 A | 0.17 in H2O | 42.3 Pa | Polybutylene Terephthalate (PBT) | 3200 RPM | 32 dB | 0.182 lb | 82.55 g | 1.12 mł/min | 40 CFM | Ball | CE, cUL, TUV, UL | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 12 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025X12B2-FSR | 3 Wire Leads | 480 mA | 0.18 in H2O | 44.8 Pa | Polybutylene Terephthalate (PBT) | 3200 RPM | 35 dB | 0.174 lb | 78.93 g | 1.43 mł/min | 51 CFM | Ball | CE, cUL, TUV, UL | Auto Restart, Locked Rotor Sensor | 12 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025E12B1-FHR | 3 Wire Leads | 0.24 A | 0.21 in H2O | 52.3 Pa | Polybutylene Terephthalate (PBT) | 3600 RPM | 35 dB | 0.182 lb | 82.55 g | 1.29 mł/min | 46 CFM | Ball | CE, cUL, TUV, UL | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 12 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial | |
Mechatronics Fan Group F8025X24B1-FSR-WS | 4 Wire Leads | 0.26 A | 0.18 in H2O | 44.8 Pa | Polybutylene Terephthalate (PBT) | 3200 RPM | 35 dB | 0.174 lb | 78.93 g | 1.43 mł/min | 51 CFM | Ball | CE, cUL, TUV, UL | Alarm Sensor, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 24 VDC | 80 mm | 80 mm | 25 mm | Tubeaxial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.69 | |
Description
General part information
F8025 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 53.0 CFM (1.48m³/min) 2 Wire Leads
