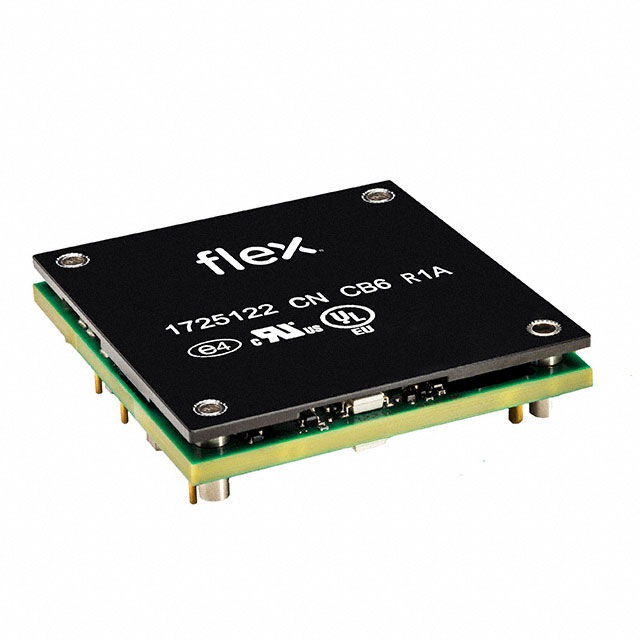

PKJ4716HPIHS

Active

Flex Power Modules

DC DC CONVERTER 50V 700W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 50V 700W

Technical Specifications

Parameters and characteristics for this part

Specification	PKJ4716HPIHS

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	14 A
Efficiency	96.6 %
Features	Remote On/Off, Adjustable Output, Baseplate, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	700 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	62368-1
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	50 V

Part	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications	Features	Control Features	Voltage - Input (Max) [Max]	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Supplier Device Package	Voltage - Output 1	Approval Agency	Standard Number	Efficiency
Flex Power Modules PKJ4716APIHS	36 V	700 W	125 °C	-40 °C	Isolated Module	ITE (Commercial)	Adjustable Output Baseplate Remote On/Off Remote Sense	Active Low Enable	75 V	Half Brick	1	25 A	1.5 kV	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Through Hole	Half Brick	28 V	CB CSA IEC TUV UL	62368-1	96.5 %
Flex Power Modules PKJ4716HPIHS	36 V	700 W	125 °C	-40 °C	Isolated Module	ITE (Commercial)	Adjustable Output Baseplate Remote On/Off Remote Sense	Active Low Enable	75 V	Half Brick	1	14 A	1.5 kV	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Through Hole	Half Brick	50 V	CB CSA IEC TUV UL	62368-1	96.6 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 50V 14A 36V - 75V Input
