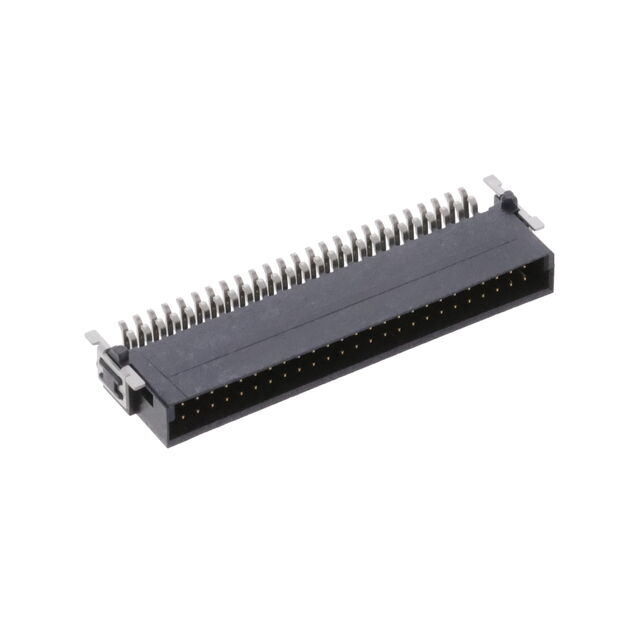

XH5A-5015-N

Active

Omron Electronics Inc-EMC Div

PLUG, RIGHT-ANGLE, SMT PINS

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

PLUG, RIGHT-ANGLE, SMT PINS

Technical Specifications

Parameters and characteristics for this part

Specification	XH5A-5015-N

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 VAC

PLUG, RIGHT-ANGLE, SMT PINS

Part	Insulation Height	Insulation Height	Style	Contact Material	Contact Finish - Mating	Features	Number of Positions	Number of Positions Loaded	Voltage Rating	Insulation Color	Fastening Type	Contact Finish - Post	Insulation Material	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Type	Termination	Shrouding	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Mounting Type
Omron Electronics Inc-EMC Div XH5A-5015-N	0.167 in	4.25 mm	Board to Board, Cable	Copper Alloy	Gold	Board Guide, Solder Retention	50	All	100 VAC	Black	Push-Pull	Tin	Liquid Crystal Polymer (LCP)	Header	0.05 in	1.27 mm	2	Male Pin	Solder	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	0.05 in	1.27 mm	Surface Mount, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 50 position 0.050" (1.27mm)
