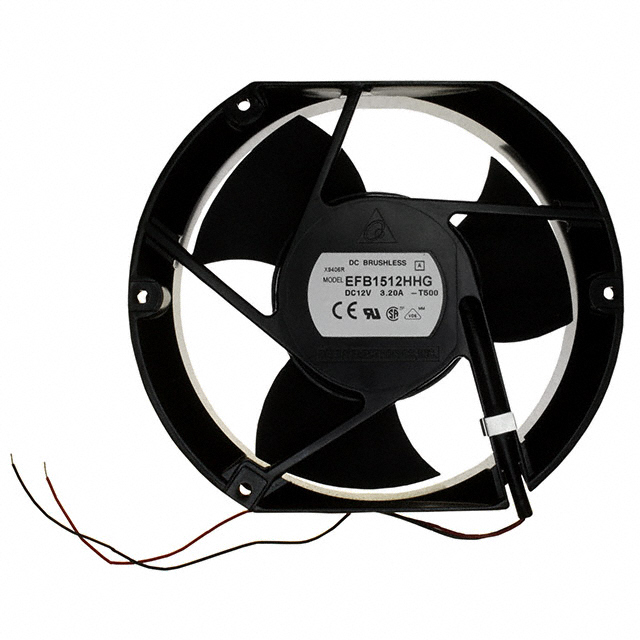

EFB1512HHG-T500

Active

Delta Electronics

FAN AXIAL 172X50.8MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 172X50.8MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	EFB1512HHG-T500

Air Flow	279.7 CFM
Air Flow	7.83 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.79 A
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	57.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	21.48 W
RPM	3700 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	8 VDC
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

Part	Approval Agency	Bearing Type	Width [y]	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Lifetime @ Temp.	Fan Type	Voltage - Rated	Current Rating (Amps)	Termination	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Noise	Power (Watts)	RPM	Ingress Protection
Delta Electronics EFB1512HG	CE CSA UL VDE	Ball	2 "	251.8 CFM	7.05 m³/min	70 °C	70 °C	-10 °C	-10 °C	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	80000 Hrs	Tubeaxial	12 VDC	1.35 A	2 Wire Leads	0.689 in H2O	171.6 Pa	8 VDC	14 V	861.8 g	1.9 lbs	55 dB	16.2 W	3350 RPM
Delta Electronics EFB1512HHG-T500	CE CSA UL VDE	Ball	2 "	279.7 CFM	7.83 m³/min	70 °C	70 °C	-10 °C	-10 °C	Plastic	Rectangular/Rounded	150 mm	172 mm	Aluminum	80000 Hrs	Tubeaxial	12 VDC	1.79 A	2 Wire Leads			8 VDC	14 V	861.8 g	1.9 lbs	57.5 dB	21.48 W	3700 RPM	IP55 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 150mm H Ball 279.7 CFM (7.83m³/min) 2 Wire Leads
