Capacitors

C330C124F5G5TA7301

Active

KEMET

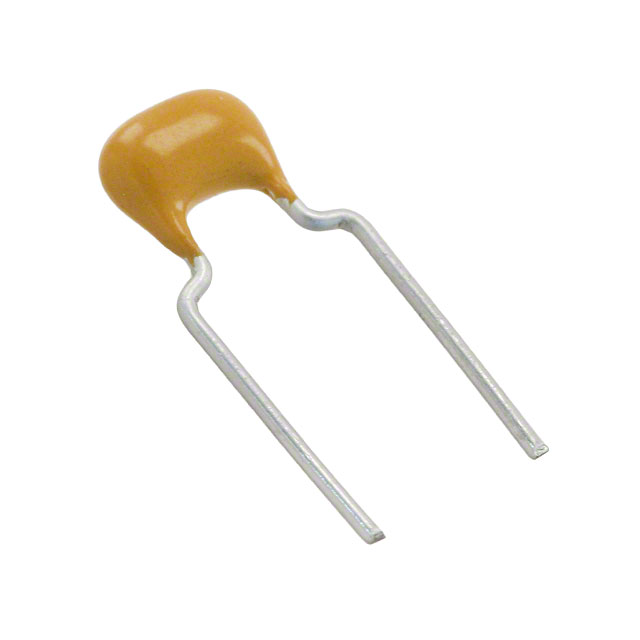

CAP CER 0.12UF 50V C0G/NP0 RAD

Capacitors

C330C124F5G5TA7301

Active

KEMET

CAP CER 0.12UF 50V C0G/NP0 RAD

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C330C124F5G5TA7301

Applications	General Purpose
Capacitance	0.12 µF
Features	Low ESL
Height - Seated (Max)	0.36 in
Lead Spacing	0.2 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	0.28 in
Size / Dimension Width	0.16 in
Temperature Coefficient	NP0, C0G
Tolerance	1 %
Voltage - Rated	50 V

C330C Series

...

Part	Voltage - Rated	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Temperature Coefficient	Tolerance	Package / Case	Size / Dimension Length	Size / Dimension Width	Height - Seated (Max)	Capacitance	Lead Spacing	Lead Style	Features
KEMET C330C105M5U5TA7305	50 V	Through Hole	85 °C	10 °C	General Purpose	Z5U	20 %	Radial	0.28 in	0.16 in	0.36 in	1 µF	0.2 in	Formed Leads
KEMET C330C622KAG5TA7301	250 V	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	10 %	Radial	0.28 in	0.16 in	0.36 in	6200 pF	0.2 in	Formed Leads	Low ESL
KEMET C330C474K5R5TA7301	50 V	Through Hole	125 °C	-55 °C	General Purpose	X7R	10 %	Radial	0.28 in	0.16 in	0.36 in	0.47 µF	0.2 in	Formed Leads
KEMET C330C474M1U5TA	100 VAC/DC	Through Hole	85 °C	10 °C	General Purpose	Z5U	20 %	Radial	0.28 in	0.16 in	0.36 in	0.47 µF	0.2 in	Formed Leads
KEMET C330C823K5G5TA7301	50 V	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	10 %	Radial	0.28 in	0.16 in	0.36 in	0.082 µF	0.2 in	Formed Leads	Low ESL
KEMET C330C752J2G5TA	200 VDC	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	5 %	Radial	0.28 in	0.16 in	0.36 in	7500 pF	0.2 in	Formed Leads	Low ESL
KEMET C330C823K2G5TA7301	200 VDC	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	10 %	Radial	0.28 in	0.16 in	0.42 in	0.082 µF	0.2 in	Straight	Low ESL
KEMET C330C823G5G5TA7301	50 V	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	2 %	Radial	0.28 in	0.16 in	0.36 in	0.082 µF	0.2 in	Formed Leads	Low ESL
KEMET C330C392FAG5TA7301	250 V	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	1 %	Radial	0.28 in	0.16 in	0.36 in	3900 pF	0.2 in	Formed Leads	Low ESL
KEMET C330C124F5G5TA7301	50 V	Through Hole	125 °C	-55 °C	General Purpose	C0G NP0	1 %	Radial	0.28 in	0.16 in	0.36 in	0.12 µF	0.2 in	Formed Leads	Low ESL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tape & Reel (TR)	1500	$ 2.54	2w

CAD

3D models and CAD resources for this part

Description

General part information

C330C Series

0.12 µF ±1% 50V Ceramic Capacitor C0G, NP0 Radial

Documents

Technical documentation and resources

C330C124F5G5TA7301 | Datasheet
