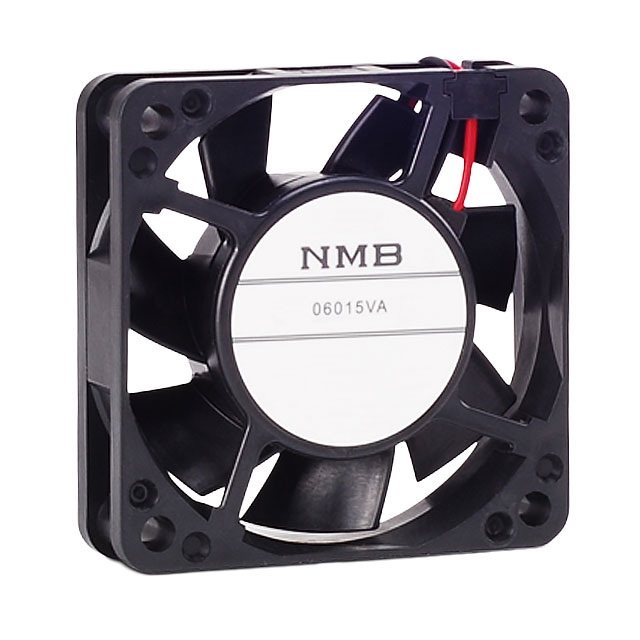

2406VL-05W-B60-B00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Part Numbering Guide Datasheet

2406VL-05W-B60-B00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsFan Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 12.85
		800	$ 12.04
		1200	$ 11.66
		2000	$ 11.45
		2400	$ 11.25
		5200	$ 11.09

Description

General part information

06015VA Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 19.4 CFM (0.543m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Fan Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2406VL-05W-B60-B00	06015VA Series

Air Flow	19.4 CFM	14.5 - 19.4 CFM
Air Flow	0.543 m³/min	0.406 - 0.543 mł/min
Bearing Type	Ball	Ball
Current Rating (Amps)	70 mA	40 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Sensor
Ingress Protection	-	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	36.5 dB(A)	31 - 36.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 - 158 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 - 14 °C
Power (Watts)	1.68 W	1.2 - 1.68 W
RPM	5600 RPM	4100 - 5600 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	67.3 Pa	47.3 - 67.3 Pa
Static Pressure	0.27 in H2O	0.19 - 0.27 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Voltage Range [Max]	27.6 VDC	13.8 - 27.6 VDC
Voltage Range [Min]	10 VDC	6 - 10 VDC
Weight	0.121 lb	0.121 - 0.132 lb
Weight	54.88 g	54.88 - 59.87 g
Width [x]	15 mm	15 mm

06015VA Series

FAN AXIAL 60X15MM 24VDC WIRE

Part	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Fan Type	RPM	Air Flow	Air Flow	Material - Blade	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Width [x]	Features	Noise	Power (Watts)	Termination	Bearing Type	Material - Frame
NMB TECHNOLOGIES 2406VL-05W-B49-B50	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	4600 RPM	0.445 mł/min	15.9 CFM	Plastic	40000 Hrs	60 mm	60 mm	50 mA	70 °C	70 °C	-10 °C	-10 °C	47.3 Pa	0.19 in H2O	15 mm	Speed Sensor (Tach)	31 dB(A)	1.2 W	3 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-04W-B59-B00	12 VDC	6 VDC	13.8 VDC	0.121 lb	54.88 g	Tubeaxial	5100 RPM	0.493 m³/min	17.6 CFM	Plastic	40000 Hrs	60 mm	60 mm	120 mA	70 °C	70 °C	-10 °C	-10 °C	57.3 Pa	0.23 in H2O	15 mm	Locked Rotor Sensor	33.5 dB(A)	1.44 W	3 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-04W-B49-B00	12 VDC	6 VDC	13.8 VDC	0.121 lb	54.88 g	Tubeaxial	4600 RPM	0.445 mł/min	15.9 CFM	Plastic	40000 Hrs	60 mm	60 mm	110 mA	70 °C	70 °C	-10 °C	-10 °C	47.3 Pa	0.19 in H2O	15 mm	Locked Rotor Sensor	31 dB(A)	1.32 W	3 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-05W-B40-B00	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	4600 RPM	0.445 mł/min	15.9 CFM	Plastic	40000 Hrs	60 mm	60 mm	50 mA	70 °C	70 °C	-10 °C	-10 °C	47.3 Pa	0.19 in H2O	15 mm		31 dB(A)	1.2 W	2 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-04W-B50-B00	12 VDC	6 VDC	13.8 VDC	0.121 lb	54.88 g	Tubeaxial	5100 RPM	0.493 m³/min	17.6 CFM	Plastic	40000 Hrs	60 mm	60 mm	120 mA	70 °C	70 °C	-10 °C	-10 °C	57.3 Pa	0.23 in H2O	15 mm		33.5 dB(A)	1.44 W	2 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-05W-B59-B00	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	5100 RPM	0.493 m³/min	17.6 CFM	Plastic	40000 Hrs	60 mm	60 mm	60 mA	70 °C	70 °C	-10 °C	-10 °C	57.3 Pa	0.23 in H2O	15 mm	Locked Rotor Sensor	33.5 dB(A)	1.44 W	3 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-05W-B49-B00	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	4600 RPM	0.445 mł/min	15.9 CFM	Plastic	40000 Hrs	60 mm	60 mm	50 mA	70 °C	70 °C	-10 °C	-10 °C	47.3 Pa	0.19 in H2O	15 mm	Locked Rotor Sensor	31 dB(A)	1.2 W	3 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-05W-B69-B50	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	5600 RPM	0.543 m³/min	19.4 CFM	Plastic	40000 Hrs	60 mm	60 mm	70 mA	70 °C	70 °C	-10 °C	-10 °C	67.3 Pa	0.27 in H2O	15 mm	Speed Sensor (Tach)	36.5 dB(A)	1.68 W	3 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-05W-B50-B00	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	5100 RPM	0.493 m³/min	17.6 CFM	Plastic	40000 Hrs	60 mm	60 mm	60 mA	70 °C	70 °C	-10 °C	-10 °C	57.3 Pa	0.23 in H2O	15 mm		33.5 dB(A)	1.44 W	2 Wire Leads	Ball	Plastic
NMB TECHNOLOGIES 2406VL-05W-B60-B00	24 VDC	10 VDC	27.6 VDC	0.121 lb	54.88 g	Tubeaxial	5600 RPM	0.543 m³/min	19.4 CFM	Plastic	40000 Hrs	60 mm	60 mm	70 mA	70 °C	70 °C	-10 °C	-10 °C	67.3 Pa	0.27 in H2O	15 mm		36.5 dB(A)	1.68 W	2 Wire Leads	Ball	Plastic
