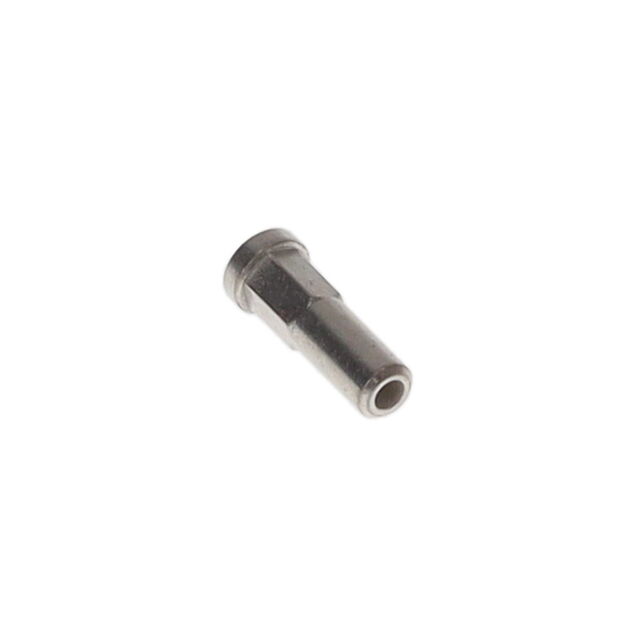

4622-0-15-80-30-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	4622-0-15-80-30-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.068 in
Flange Diameter [diameter]	1.73 mm
Length - Overall [x]	4.52 mm
Length - Overall [x]	0.178 in
Mounting Hole Diameter [diameter]	0.053 in
Mounting Hole Diameter [diameter]	1.35 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	2.18 mm
Socket Depth	0.086 in
Tail Type	No Tail
Termination	Press-Fit, Hex

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Length - Overall [x]	Length - Overall [x]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Termination
Mill-Max Manufacturing Corp. 4622-0-15-15-30-27-10-0	0.053 in	1.35 mm	Gold	0.068 in	1.73 mm	Beryllium Copper	4.52 mm	0.178 in	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	0.76 Ám	30 Áin	-55 °C	125 °C	2.18 mm	0.086 in	Press-Fit Hex
Mill-Max Manufacturing Corp. 4622-0-15-01-30-27-10-0	0.053 in	1.35 mm	Gold	0.068 in	1.73 mm	Beryllium Copper	4.52 mm	0.178 in	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	0.76 Ám	30 Áin	-55 °C	125 °C	2.18 mm	0.086 in	Press-Fit Hex
Mill-Max Manufacturing Corp. 4622-0-15-80-30-84-10-0	0.053 in	1.35 mm	Tin	0.068 in	1.73 mm	Beryllium Copper	4.52 mm	0.178 in	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	2.54 µm	100 µin	-55 °C	125 °C	2.18 mm	0.086 in	Press-Fit Hex
Mill-Max Manufacturing Corp. 4622-0-15-15-30-14-10-0	0.053 in	1.35 mm	Gold	0.068 in	1.73 mm	Beryllium Copper	4.52 mm	0.178 in	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	0.25 Ám	10 Áin	-55 °C	125 °C	2.18 mm	0.086 in	Press-Fit Hex
Mill-Max Manufacturing Corp. 4622-0-15-80-30-27-10-0	0.053 in	1.35 mm	Gold	0.068 in	1.73 mm	Beryllium Copper	4.52 mm	0.178 in	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	0.76 Ám	30 Áin	-55 °C	125 °C	2.18 mm	0.086 in	Press-Fit Hex

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Press-Fit, Hex
