22SEWC750100

Active

Essentra Access Solutions

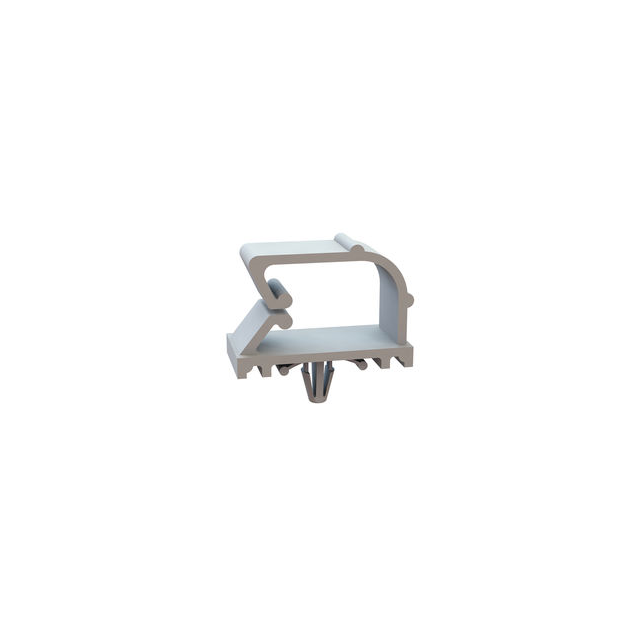

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	22SEWC750100

Bundle Center to Mounting Center	19.05 mm
Bundle Center to Mounting Center	0.75 in
Color	Natural
Height [z]	1.35 "
Height [z]	34.29 mm
Length [x]	1.47 in
Length [x]	37.34 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Panel Thickness	0.105 in
Panel Thickness	2.67 mm
Type	Clip, Wire Saddle
Type Attributes	Micro
Width	18.54 mm
Width [y]	0.73 in

Part	Material	Material Flammability Rating	Mounting Type	Panel Thickness	Panel Thickness	Type	Type Attributes	Color	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Height [z]	Height [z]	Width	Width [y]	Length [x]	Length [x]
Essentra Access Solutions 22SEWC500375	Polyamide (PA66) Nylon 6/6	UL94 V-2	Arrowhead Winged	0.105 in	2.67 mm	Clip Wire Saddle	Side Entry	Natural
Essentra Access Solutions 22SEWC750100	Polyamide (PA66) Nylon 6/6	UL94 V-2	Arrowhead Winged	0.105 in	2.67 mm	Clip Wire Saddle	Micro	Natural	19.05 mm	0.75 in	1.35 "	34.29 mm	18.54 mm	0.73 in	1.47 in	37.34 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged
