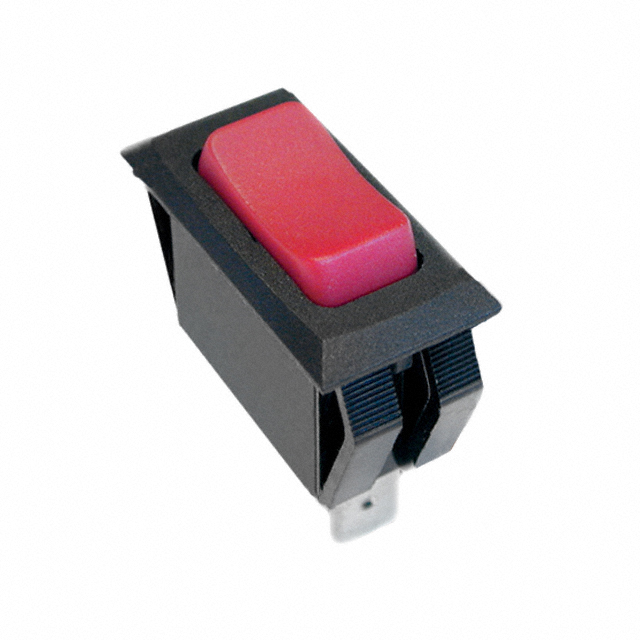

CRE22F2FBRNE

Active

ZF Electronics

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES

Part	Electrical Life	Switch Function	Current Rating (Amps)	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Voltage Rating - AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type
ZF Electronics CRE22F2FBBNE	6000 Cycles	On-Off	20 A	100000 Cycles	Black	O -	SPST	28.5 mm	12.1 mm	Quick Connect - 0.250" (6.3mm)	125 V	Panel Mount, Snap-In	85 °C	-20 C	Concave (Curved)
ZF Electronics CRE22F2FBRNE	6000 Cycles	On-Off	20 A	100000 Cycles	Red	O -	SPST	28.5 mm	12.1 mm	Quick Connect - 0.250" (6.3mm)	125 V	Panel Mount, Snap-In	85 °C	-20 C	Concave (Curved)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.18

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
