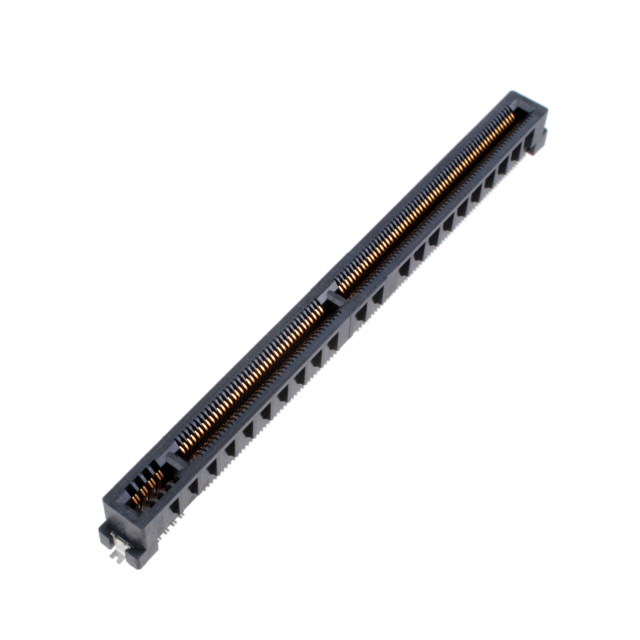

SE1820023111111

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 208P 0.026

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 208P 0.026

Technical Specifications

Parameters and characteristics for this part

Specification	SE1820023111111

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Solder Retention, Board Guide, Pick and Place Cap
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions [custom]	8
Number of Positions [custom]	200
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.026 in
Pitch [x]	0.65 mm
Read Out	Dual
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Material - Insulation	Contact Type	Mounting Type	Contact Material	Termination	Pitch [x]	Pitch [x]	Read Out	Contact Finish	Color	Gender	Number of Rows	Features
Amphenol ICC (FCI) SE1820023111111	105 ░C	-55 °C	Non Specified - Dual Edge	0.76 Ám	30 Áin	8	200	Thermoplastic	Cantilever	Surface Mount	Copper Alloy	Solder	0.026 in	0.65 mm	Dual	Gold	Black	Female	2	Board Guide Pick and Place Cap Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

208 (200 + 8 Power) Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
