42R44-3111-200

Active

Power Dynamics, Inc.

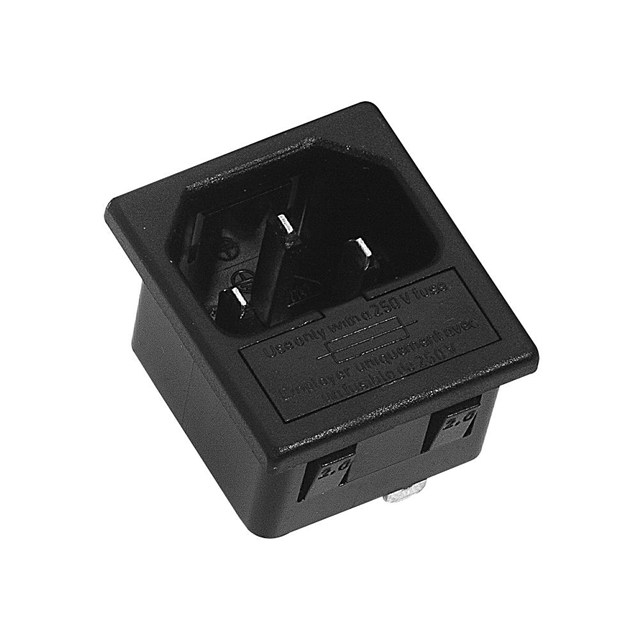

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	42R44-3111-200

Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	37.5 mm
Panel Cutout Dimensions [y]	21.5 mm
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Connector Style	Connector Type	Mounting Type	Approval Agency	Termination	Termination	Termination
Power Dynamics, Inc. 42R44-3111-200	37.5 mm	21.5 mm	UL94 V-0	IEC 320-C14	Receptacle, Male Blades - Module	Panel Mount, Snap-In	CSA, UL, VDE	0.187 "	4.7 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
