STK30N2LLH5

Obsolete

STMicroelectronics

MOSFET N-CH 25V 30A POLARPAK

Search across all available documentation for this part.

Obsolete

STMicroelectronics

MOSFET N-CH 25V 30A POLARPAK

Technical Specifications

Parameters and characteristics for this part

Specification	STK30N2LLH5

Current - Continuous Drain (Id) @ 25°C	30 A
Drain to Source Voltage (Vdss)	25 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	18 nC
Input Capacitance (Ciss) (Max) @ Vds	2290 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

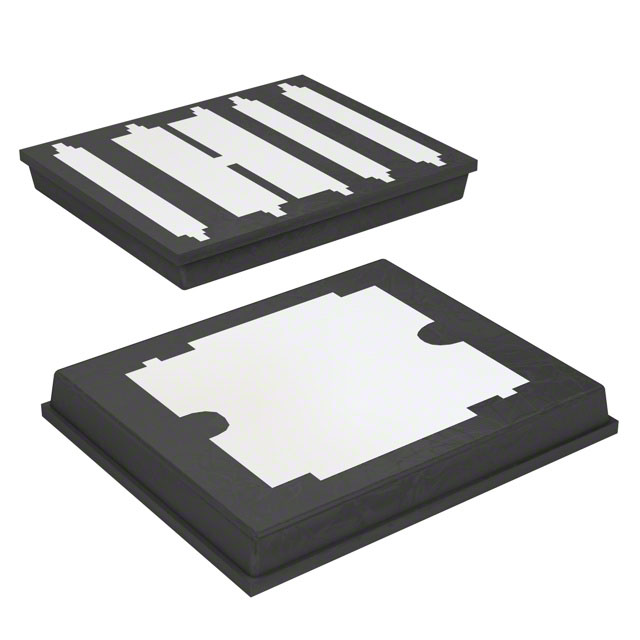

Package / Case	PolarPak®
Power Dissipation (Max) [Max]	5.2 W
Rds On (Max) @ Id, Vgs	2.9 mOhm
Supplier Device Package	PolarPak®
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

Part	Vgs (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Drain to Source Voltage (Vdss)	FET Type	Power Dissipation (Max) [Max]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Rds On (Max) @ Id, Vgs	Package / Case	Drive Voltage (Max Rds On, Min Rds On)
STMicroelectronics STK30N2LLH5	20 V	Surface Mount	30 A	PolarPak®	25 V	N-Channel	5.2 W	2.5 V	18 nC	2290 pF	-55 °C	150 °C	MOSFET (Metal Oxide)	2.9 mOhm	PolarPak®	4.5 V 10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 25 V 30A (Tc) 5.2W (Tc) Surface Mount PolarPak®
