9500PC-1"X36YD

Active

3M (TC)

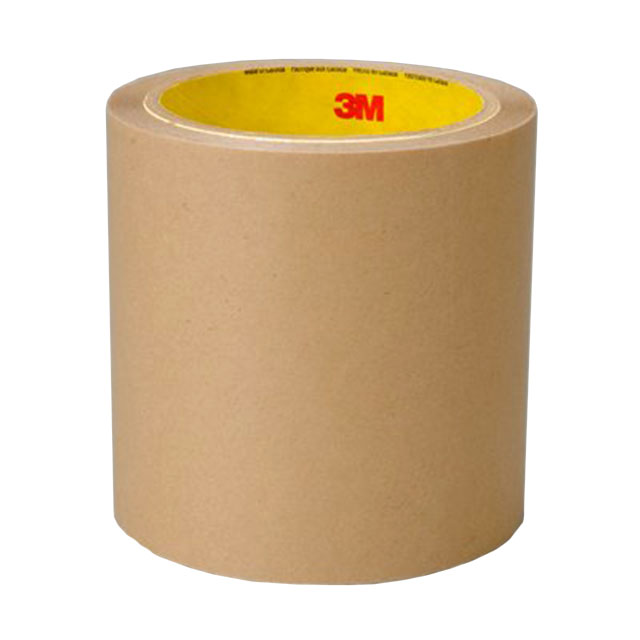

TAPE DBL SIDED CLR 1"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE DBL SIDED CLR 1"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	9500PC-1"X36YD

Adhesive	Acrylic, 350
Backing, Carrier [custom]	Polycoated Kraft
Backing, Carrier [custom]	Polyester
Color	Clear
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Double Coated, Double Sided
Temperature Range [Max]	38 °C
Temperature Range [Max]	100 °F
Temperature Range [Min]	21 °C
Temperature Range [Min]	70 °F
Thickness	0.0056 "
Thickness	5.6 mils
Thickness	0.142 mm
Thickness - Adhesive	0.117 mm
Thickness - Adhesive	4.6 mils
Thickness - Adhesive	0.0046 in
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Holding, Mounting, Joining
Width [x]	25.4 mm
Width [x]	1 in

Part	Width	Width	Width	Adhesive	Thickness	Thickness	Thickness	Shelf Life	Shelf Life Start	Tape Type	Backing, Carrier [custom]	Backing, Carrier [custom]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Color	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Width [x]	Width [x]
3M (TC) 9500PC-3/4"X36YD	0.75 in	19.05 mm	0.75 in	Acrylic 350	0.0056 "	5.6 mils	0.142 mm	24 Months	Date of Manufacture	Double Coated Double Sided	Polycoated Kraft	Polyester	70 °F	21 °C	Clear	38 °C	21 °C	100 °F	70 °F	0.117 mm	4.6 mils	0.0046 in	Holding Joining Mounting	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft
3M (TC) 9500PC-1"X36YD				Acrylic 350	0.0056 "	5.6 mils	0.142 mm	24 Months	Date of Manufacture	Double Coated Double Sided	Polycoated Kraft	Polyester	70 °F	21 °C	Clear	38 °C	21 °C	100 °F	70 °F	0.117 mm	4.6 mils	0.0046 in	Holding Joining Mounting	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Double Coated, Double Sided Tape Acrylic, 350 Adhesive Clear 1.00" (25.40mm) X 108' (32.9m) 36 yds
