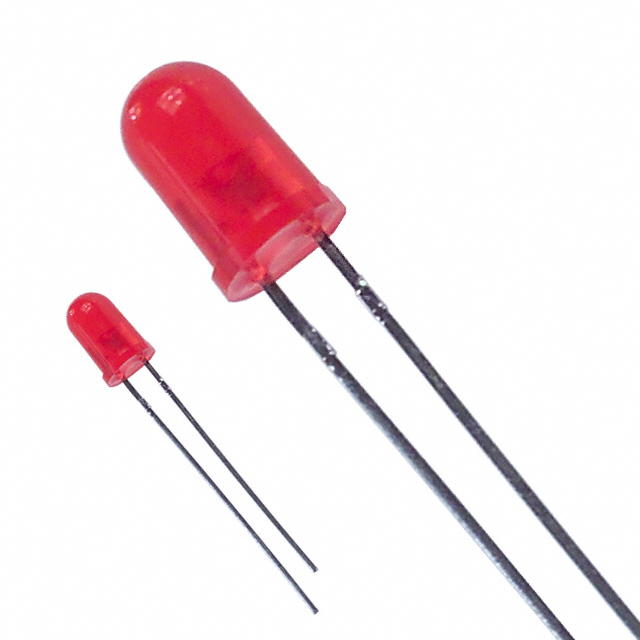

LTL-4223
ActiveDiodes Inc
LED RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTL-4223
ActiveDiodes Inc
LED RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTL-4223 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 19 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Viewing Angle | 36 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 623 nm |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 10 | $ 0.15 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.05 | |||
| 10000 | $ 0.05 | |||
| 25000 | $ 0.04 | |||
Description
General part information
LTL-4223 Series
Red 623nm LED Indication - Discrete 2V Radial
