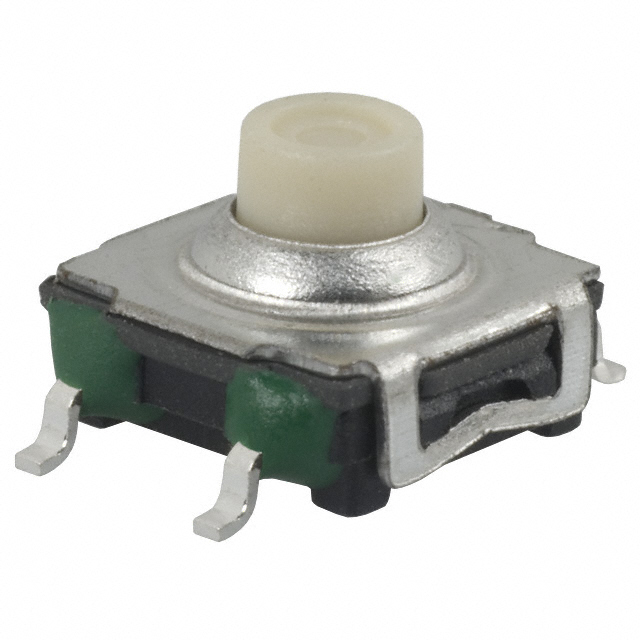

TL6120BF130QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL6120BF130QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.04
		10	$ 1.00
		25	$ 0.94
		100	$ 0.81
		250	$ 0.74
	Digi-Reel®	1	$ 1.04
		10	$ 1.00
		25	$ 0.94
		100	$ 0.81
		250	$ 0.74
	Tape & Reel (TR)	700	$ 0.48
		1400	$ 0.48

Description

General part information

TL6120 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6120BF130QG	TL6120 Series

Actuator Height off PCB, Vertical	5.2 mm	5.2 mm
Actuator Height off PCB, Vertical	-	4.7 - 10 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	-	Stainless Steel Contact Dome
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	500000 - 1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	130 gf	0.5 - 300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.4 mm	7.4 mm
Outline [y]	7.4 mm	7.4 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.5 mm
Termination Style	Gull Wing	Gull Wing

TL6120 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Actuator Type	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Material	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Contact Rating @ Voltage	Actuator Orientation	Mounting Type	Switch Travel	Outline [x]	Outline [y]	Circuit	Operating Force	Actuator Height off PCB, Vertical	Features
E-Switch TL6120DF160QG	Gull Wing	Standard	1000000 Cycles	10 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO
E-Switch TL6120AF130QG	Gull Wing	Standard	1000000 Cycles	4.7 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO	130 gf
E-Switch TL6120AF160QG	Gull Wing	Standard	1000000 Cycles	4.7 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO
E-Switch TL6120BF130QG	Gull Wing	Standard	1000000 Cycles		Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO	130 gf	5.2 mm
E-Switch TL6120BF160RG	Gull Wing	Standard	1000000 Cycles		Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO		5.2 mm
E-Switch TL6120CF160QG	Gull Wing	Standard	1000000 Cycles	6.9 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO
E-Switch TL6120DF500RG	Gull Wing	Standard	500000 Cycles	10 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO	0.5 kgf
E-Switch TL6120AF300QG	Gull Wing	Standard	500000 Cycles	4.7 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO	300 gf
E-Switch TL6120AF130QGSSDOME	Gull Wing	Standard	1000000 Cycles	4.7 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO	130 gf		Stainless Steel Contact Dome
E-Switch TL6120DF300QG	Gull Wing	Standard	500000 Cycles	10 mm	Nylon, Polyamide (PA)	Off-Mom	85 °C	-40 °C	Non-Illuminated	0.05 A, 12 VDC	Top Actuated	Surface Mount	0.5 mm	7.4 mm	7.4 mm	SPST-NO	300 gf
