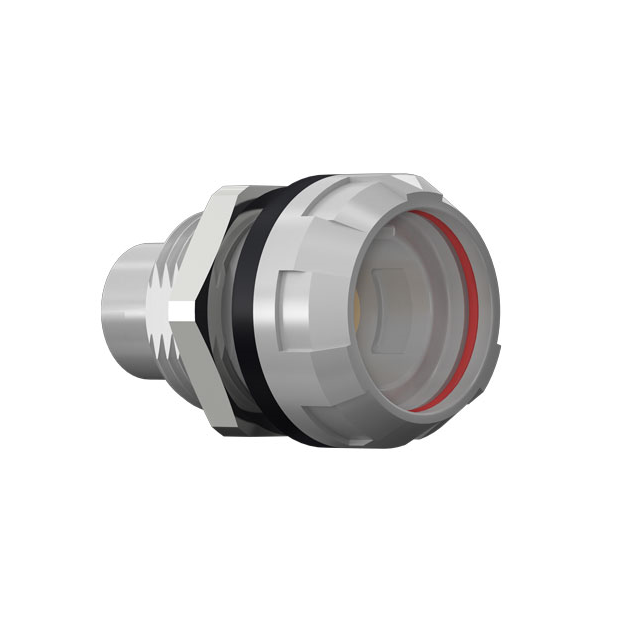

GA1M07-P02LPH0-0000

Active

ODU

ODU MEDI-SNAP,RECEPTACLE, STY A,

Search across all available documentation for this part.

Active

ODU

ODU MEDI-SNAP,RECEPTACLE, STY A,

Technical Specifications

Parameters and characteristics for this part

Specification	GA1M07-P02LPH0-0000

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP68, IP67, IP64
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	48 VDC

Part	Shell Material	Voltage Rating	Number of Positions	Contact Finish - Mating	Primary Material	Applications	Shielding	Insert Material	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Termination	Fastening Type	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Contact Material	Ingress Protection	Mounting Feature
ODU GA1M07-P08QF00-0000	Polysulfone (PSU)	32 V	8	Gold	Plastic	Industrial Measurement Medical Testing Equipment	Unshielded	Polyetheretherketone (PEEK)	UL94 V-0	Panel Mount Through Hole	6 A	Solder	Detent Lock Push-Pull	Receptacle Female Sockets	Gray	-50 °C	120 °C	1	Brass	IP64 IP67 IP68	Bulkhead - Rear Side Nut
ODU GA1M07-P08NFG0-0000	Polysulfone (PSU)	10 V	8	Gold	Plastic	Industrial Measurement Medical Testing Equipment	Unshielded	Polyetheretherketone (PEEK)	UL94 V-0		7.5 A	Crimp	Detent Lock Push-Pull	Receptacle Female Sockets	Gray	-50 °C	120 °C	1	Brass	IP64 IP67 IP68	Bulkhead - Rear Side Nut
ODU GA1M07-P06LFG0-0000	Polysulfone (PSU)	33 V	6	Gold	Plastic	Industrial Measurement Medical Testing Equipment	Unshielded	Polyetheretherketone (PEEK)	UL94 V-0		7.5 A		Detent Lock Push-Pull	Receptacle Female Sockets	Gray	-50 °C	120 °C	1	Brass	IP64 IP67 IP68	Bulkhead - Rear Side Nut
ODU GA1M07-P02LPH0-0000	Polysulfone (PSU)	48 VDC	2	Gold	Plastic	Industrial Measurement Medical Testing Equipment	Unshielded	Polyetheretherketone (PEEK)	UL94 V-0		12 A		Detent Lock Push-Pull	Receptacle Female Sockets	Gray	-50 °C	120 °C	1	Brass	IP64 IP67 IP68	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
