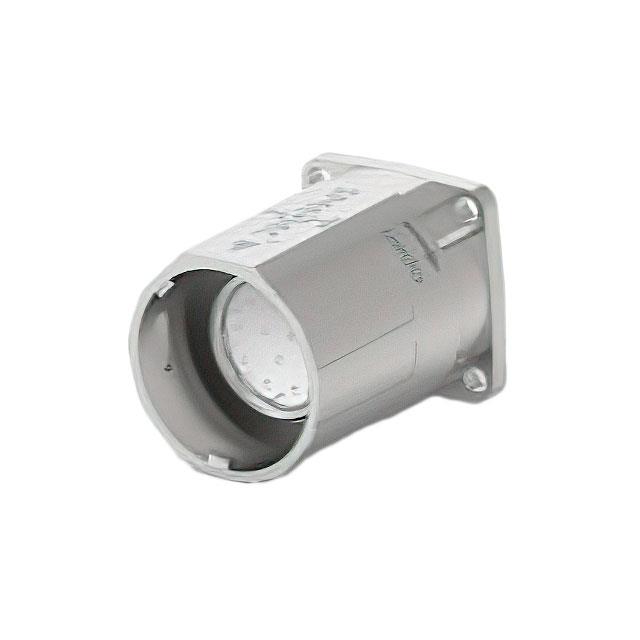

ADA021N00000101000

Active

TE Intercontec

CONN PLG HSG FMALE 12POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 12POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	ADA021N00000101000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP66/IP67
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 12POS PNL MT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Shell Material	Number of Positions	Contact Shape	Connector Type	Mounting Feature	Shielding	Features	Material Flammability Rating	Fastening Type	Note	Housing Color	Orientation	Type
TE Intercontec ADA021N00000101000	-20 C	130 °C	IP66/IP67	Nickel	Zinc Die Cast	12	Circular	Plug Housing	Flange	Unshielded	Coupling Nut	UL94 V-0	Push-Twist	Contacts Not Included	Silver	Keyed	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug Housing Panel Mount Coupling Nut
