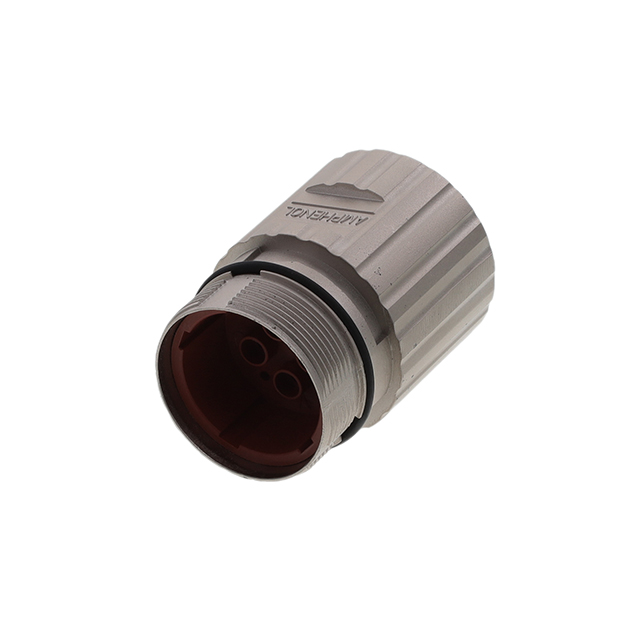

MC1JJN0600
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 6POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
MC1JJN0600
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 6POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MC1JJN0600 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 2 mm, 3.6 mm |
| Contact Type | Crimp |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M40-6 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.06 | |
| 10 | $ 8.03 | |||
| 25 | $ 7.72 | |||
| 50 | $ 7.41 | |||
| 100 | $ 7.25 | |||
Description
General part information
MC1JJN Series
6 (2 + 4 Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line)
