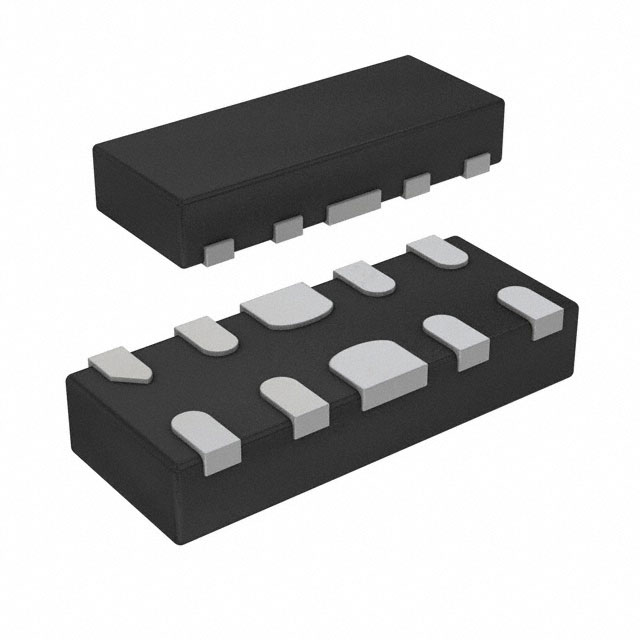

XBP14E5UFN-G

Active

Torex Semiconductor Ltd

TVS DIODE 5VWM 13VC DFN2510-10

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

TVS DIODE 5VWM 13VC DFN2510-10

Technical Specifications

Parameters and characteristics for this part

Specification	XBP14E5UFN-G

Applications	General Purpose
Capacitance @ Frequency	0.6 pF
Current - Peak Pulse (10/1000µs)	2.5 A
Mounting Type	Surface Mount
Operating Temperature	125 ¯C
Package / Case	10-UFDFN
Power Line Protection	True
Supplier Device Package	DFN2510-10A
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	13 V
Voltage - Reverse Standoff (Typ)	5 V

TVS DIODE 5VWM 13VC DFN2510-10

Part	Voltage - Reverse Standoff (Typ)	Operating Temperature	Power Line Protection	Current - Peak Pulse (10/1000µs)	Type	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Mounting Type	Unidirectional Channels [custom]	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Applications
Torex Semiconductor Ltd XBP14E5UFN-G	5 V	125 ¯C		2.5 A	Steering	6 V	0.6 pF	Surface Mount	4	10-UFDFN	13 V	DFN2510-10A	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510-10A
