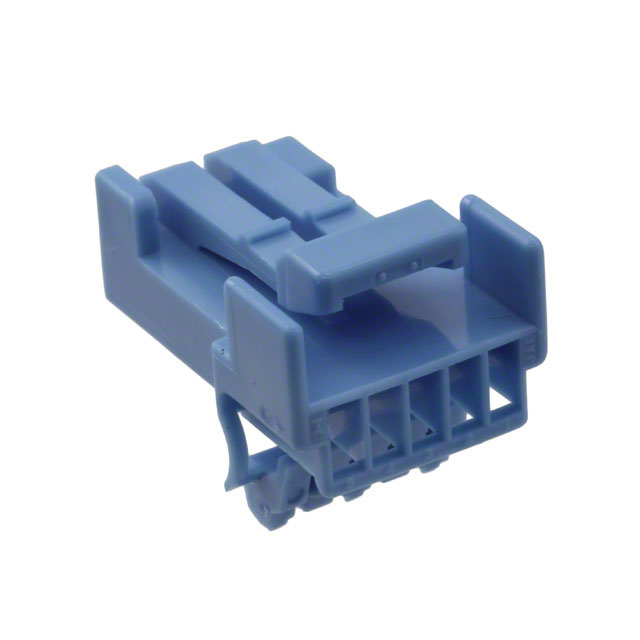

IL-AG5-5SK-S3C1-LB

Active

JAE Electronics

CONN RCPT HSG 5POS 2.50MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 5POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-5SK-S3C1-LB

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Number of Rows	Pitch [x]	Pitch [x]	Note	Contact Type	Connector Type	Insulation Material	Contact Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
JAE Electronics IL-AG5-5SK-S3C1-LB	1	0.098 in	2.5 mm	Contacts Not Included	Female Socket	Receptacle	Polybutylene Terephthalate (PBT)	Crimp	Blue	85 °C	-40 °C	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle Blue 0.098" (2.50mm)
