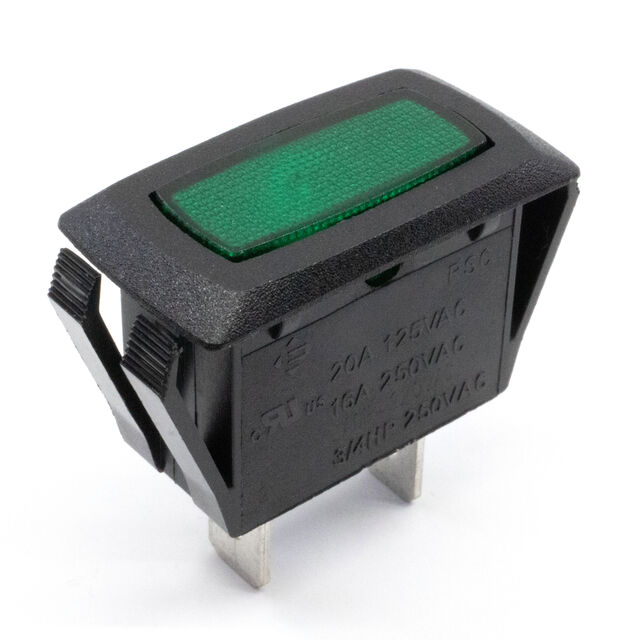

RSCHT14001000-137
ActiveE-Switch
NEON PANEL INDICATOR GRN
Deep-Dive with AI
Search across all available documentation for this part.
RSCHT14001000-137
ActiveE-Switch
NEON PANEL INDICATOR GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSCHT14001000-137 |
|---|---|
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [x] | 28.6 mm |
| Lens Size [y] | 13.9 mm |
| Lens Style | Rectangle with Flat Top |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [x] | 1.12 in |
| Panel Cutout Dimensions [y] | 13.8 mm |
| Panel Cutout Dimensions [y] | 0.54 in |
| Panel Cutout Shape | Rectangle |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | Neon |
| Voltage | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 1.48 | |
Description
General part information
RSCHT1400 Series
Neon Panel Indicator Green 250V Quick Connect - 0.250" (6.3mm)
Documents
Technical documentation and resources
No documents available
