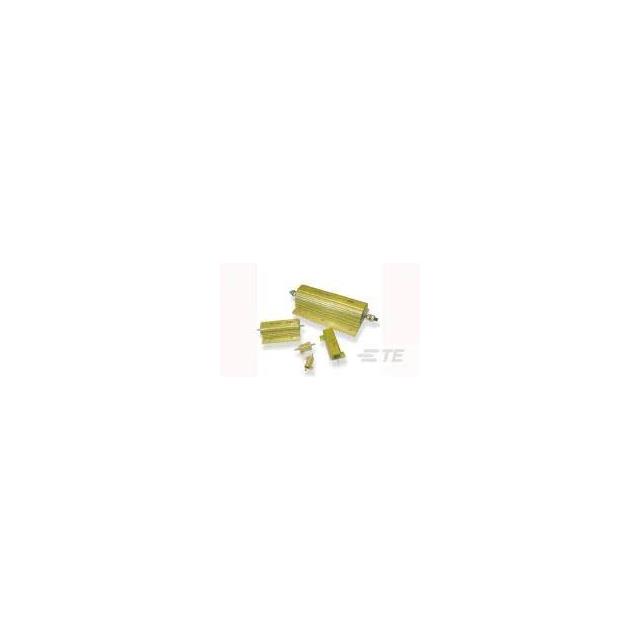

1-1630027-7
ActiveTE Connectivity Passive Product
HSC300 4R7 5%
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1630027-7
ActiveTE Connectivity Passive Product
HSC300 4R7 5%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1630027-7 |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 42 mm |
| Height - Seated (Max) [Max] | 1.654 in |
| Lead Style | Terminal Screw Type |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 300 W |
| Resistance | 4.7 Ohms |
| Size / Dimension [x] | 5.039 " |
| Size / Dimension [x] | 128 mm |
| Size / Dimension [y] | 2.874 in |
| Size / Dimension [y] | 73 mm |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 47.99 | |
Description
General part information
1630027 Series
4.7 Ohms ±5% 300W Wirewound Chassis Mount Resistor
