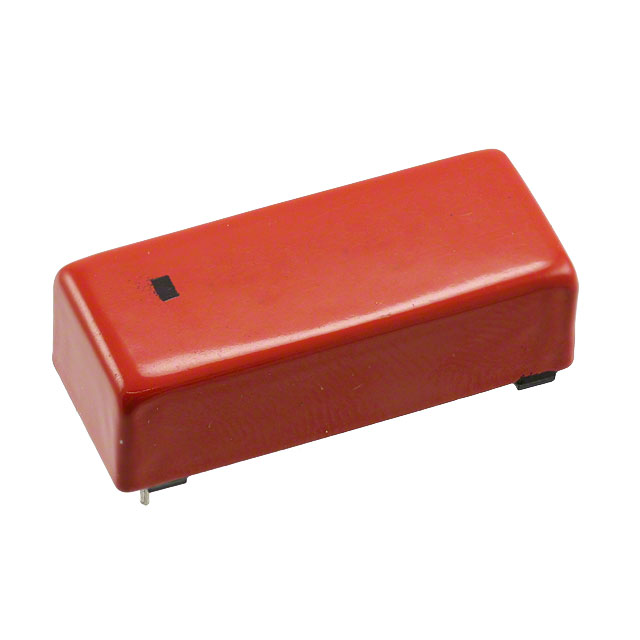

7302-24-1010

Coto Technology

RELAY REED DPST 500MA 24V

Search across all available documentation for this part.

Coto Technology

RELAY REED DPST 500MA 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED DPST 500MA 12V

Part	Switching Voltage	Termination Style	Release Time	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Current	Contact Form	Mounting Type	Contact Rating (Current)	Operate Time	Must Release Voltage	Coil Resistance	Coil Type	Features
Coto Technology 7302-12-1100	500 VAC, 500 VDC	PC Pin	0.1 ms	12 VDC	85 °C	-20 C	9 VDC	18.8 mA	DPST-NO (2 Form A)	Through Hole	0.5 A	1 ms	1 VDC	640 Ohms	Non Latching
Coto Technology 7302-24-1010	500 VAC, 500 VDC	PC Pin	0.1 ms	24 VDC	85 °C	-20 C	18 VDC	9.8 mA	DPST-NO (2 Form A)	Through Hole	0.5 A	1 ms	2 VDC	2.45 kOhms	Non Latching	Electrostatic Shield
Coto Technology 7302-05-1010	500 VAC, 500 VDC	PC Pin	0.1 ms	5 VDC	85 °C	-20 C	3.75 VDC	50 mA	DPST-NO (2 Form A)	Through Hole	0.5 A	1 ms	0.4 VDC	100 Ohms	Non Latching	Electrostatic Shield
Coto Technology 7302-12-1000	500 VAC, 500 VDC	PC Pin	0.1 ms	12 VDC	85 °C	-20 C	9 VDC	18.8 mA	DPST-NO (2 Form A)	Through Hole	0.5 A	1 ms	1 VDC	640 Ohms	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED DPST 500MA 24V
