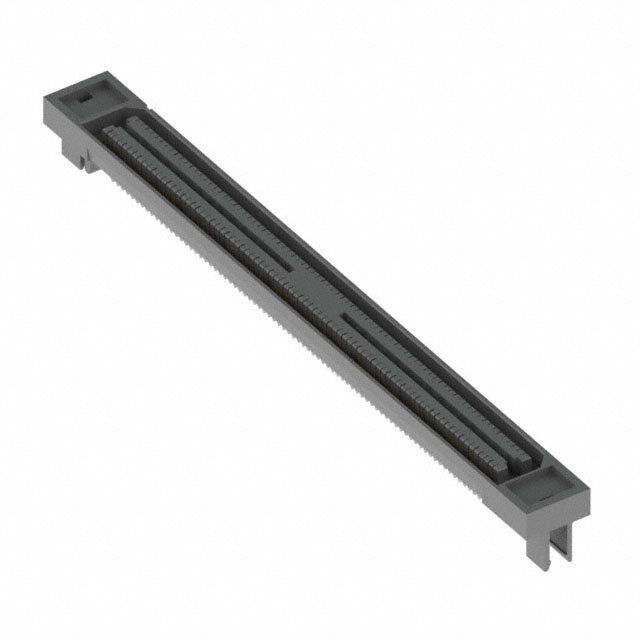

BSE-080-01-F-D-EM2

Active

Samtec Inc.

CONN RCPT 160POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

BSE-080-01-F-D-EM2

Active

Samtec Inc.

CONN RCPT 160POS EDGE MNT GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-080-01-F-D-EM2

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Mounting Type	Board Edge, Straddle Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BSE-080 Series

Board to Board & Mezzanine Connectors 0.80 mm Basic Blade & Beam Socket Strip

Part	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Features	Contact Finish	Connector Type	Contact Finish Thickness
Samtec Inc. BSE-080-01-C-D-A	5 mm 8 mm	3.25 mm	0.128 in	160	50 µin	1.27 µm	2	Surface Mount	0.8 mm	0.031 in	Board Guide	Gold	Center Strip Contacts Receptacle
Samtec Inc. BSE-080-01-L-D	5 mm 8 mm	3.25 mm	0.128 in	160	10 Áin	0.25 Ám	2	Surface Mount	0.8 mm	0.031 in		Gold	Center Strip Contacts Receptacle
Samtec Inc. BSE-080-01-F-D	5 mm 8 mm	3.25 mm	0.128 in	160			2	Surface Mount	0.8 mm	0.031 in		Gold	Center Strip Contacts Receptacle	Flash
Samtec Inc. BSE-080-01-H-D	5 mm 8 mm	3.25 mm	0.128 in	160			2	Surface Mount	0.8 mm	0.031 in		Gold	Center Strip Contacts Receptacle
Samtec Inc. BSE-080-01-L-D-A-TR	5 mm 8 mm	3.25 mm	0.128 in	160	10 Áin	0.25 Ám	2	Surface Mount	0.8 mm	0.031 in	Board Guide	Gold	Center Strip Contacts Receptacle
Samtec Inc. BSE-080-01-L-D-A	5 mm 8 mm	3.25 mm	0.128 in	160	10 Áin	0.25 Ám	2	Surface Mount	0.8 mm	0.031 in	Board Guide	Gold	Center Strip Contacts Receptacle
Samtec Inc. BSE-080-01-H-D-A-TR	5 mm 8 mm	3.25 mm	0.128 in	160			2	Surface Mount	0.8 mm	0.031 in	Board Guide	Gold	Center Strip Contacts Receptacle
Samtec Inc. BSE-080-01-F-D-A-TR	5 mm 8 mm	3.25 mm	0.128 in	160			2	Surface Mount	0.8 mm	0.031 in	Board Guide	Gold	Center Strip Contacts Receptacle	Flash
Samtec Inc. BSE-080-01-F-D-EM2				160			2	Board Edge Straddle Mount	0.8 mm	0.031 in		Gold	Center Strip Contacts Receptacle	Flash
Samtec Inc. BSE-020-01-F-D-A-TR	5 mm 8 mm	3.25 mm	0.128 in	40			2	Surface Mount	0.8 mm	0.031 in	Board Guide	Gold	Center Strip Contacts Receptacle	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.04

Description

General part information

BSE-080 Series

Board to Board & Mezzanine Connectors 0.80 mm Basic Blade & Beam Socket Strip

Documents

Technical documentation and resources

No documents available
