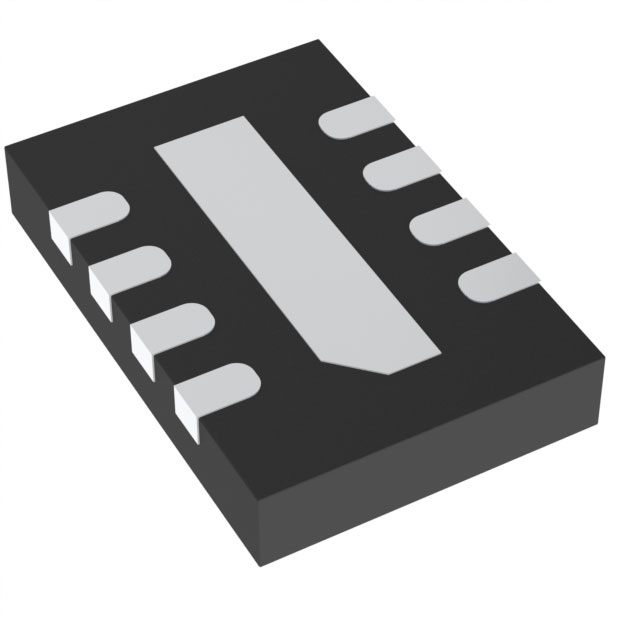

LTC2950IDDB-2#TRMPBF
ActiveLTC2950 - PUSH BUTTON ON/OFF CONTROLLER; PACKAGE: DFN; PINS: 8; TEMPERATURE RANGE: -40°C TO 85°C
Deep-Dive with AI
Search across all available documentation for this part.
LTC2950IDDB-2#TRMPBF
ActiveLTC2950 - PUSH BUTTON ON/OFF CONTROLLER; PACKAGE: DFN; PINS: 8; TEMPERATURE RANGE: -40°C TO 85°C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LTC2950IDDB-2#TRMPBF | LTC2950 Series |
|---|---|---|
| Applications | On/Off Controller, Push Button | On/Off Controller, Push Button |
| Current - Supply | 6 µA | 6 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad, TSOT-23-8, SOT-23-8 Thin |
| Supplier Device Package | 8-DFN (3x2) | 8-DFN (3x2), TSOT-23-8 |
| Voltage - Supply [Max] | 26.4 V | 26.4 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Analog Devices Inc | N/A | 1 | $ 8.07 | |
| 1 | $ 8.07 | |||
| 10 | $ 5.54 | |||
| 10 | $ 5.54 | |||
| 25 | $ 4.88 | |||
| 25 | $ 4.88 | |||
| 100 | $ 4.15 | |||
| 100 | $ 4.15 | |||
| 250 | $ 3.79 | |||
| 250 | $ 3.79 | |||
| 500 | $ 3.57 | |||
| 500 | $ 3.57 | |||
| 1000 | $ 3.39 | |||
| 1000 | $ 3.39 | |||
| 1500 | $ 3.30 | |||
| 1500 | $ 3.30 | |||
| 2500 | $ 3.25 | |||
| 2500 | $ 3.25 | |||
| DigiKey | N/A | 1 | $ 7.76 | |
| 10 | $ 5.18 | |||
| 25 | $ 4.51 | |||
| 100 | $ 3.76 | |||
| 250 | $ 3.38 | |||
| 500 | $ 3.25 | |||
| Digikey | Cut Tape (CT) | 1 | $ 8.07 | |
| 10 | $ 5.54 | |||
| 25 | $ 4.88 | |||
| 100 | $ 4.15 | |||
| 250 | $ 3.79 | |||
| Digi-Reel® | 1 | $ 8.07 | ||
| 10 | $ 5.54 | |||
| 25 | $ 4.88 | |||
| 100 | $ 4.15 | |||
| 250 | $ 3.79 | |||
| Tape & Reel (TR) | 500 | $ 3.57 | ||
| 1000 | $ 3.39 | |||
| 1500 | $ 3.30 | |||
| 2500 | $ 3.25 | |||
| Farnell | N/A | 1 | $ 7.82 | |
| 1 | $ 7.89 | |||
| 10 | $ 5.35 | |||
| 10 | $ 5.41 | |||
| 10 | $ 5.35 | |||
| 10 | $ 5.41 | |||
| 25 | $ 4.72 | |||
| 25 | $ 4.77 | |||
| 25 | $ 4.72 | |||
| 25 | $ 4.77 | |||
| 100 | $ 3.41 | |||
| 100 | $ 3.43 | |||
| 100 | $ 3.41 | |||
| 100 | $ 3.43 | |||
| 250 | $ 3.11 | |||
| 250 | $ 3.15 | |||
| 250 | $ 3.11 | |||
| 250 | $ 3.15 | |||
| Mouser Electronics | N/A | 1 | $ 8.04 | |
| 1 | $ 8.04 | |||
| 1 | $ 8.04 | |||
| 10 | $ 5.51 | |||
| 10 | $ 5.51 | |||
| 10 | $ 5.51 | |||
| 25 | $ 4.87 | |||
| 25 | $ 4.87 | |||
| 25 | $ 4.87 | |||
| 100 | $ 4.14 | |||
| 100 | $ 4.14 | |||
| 100 | $ 4.14 | |||
| 250 | $ 3.78 | |||
| 250 | $ 3.78 | |||
| 250 | $ 3.78 | |||
| 500 | $ 3.56 | |||
| 500 | $ 3.56 | |||
| 500 | $ 3.56 | |||
| 1000 | $ 3.30 | |||
| 1000 | $ 3.30 | |||
| 1000 | $ 3.30 | |||
| Newark | N/A | 1 | $ 8.07 | |
| 10 | $ 5.54 | |||
| 25 | $ 4.88 | |||
| 50 | $ 4.51 | |||
| 100 | $ 4.15 | |||
| 250 | $ 3.79 | |||
| Richardson RFPD | N/A | 500 | $ 3.58 | |
| 500 | $ 3.58 | |||
| 1000 | $ 3.49 | |||
| 1000 | $ 3.49 | |||
| 5000 | $ 3.36 | |||
| 5000 | $ 3.36 | |||
| Verical | N/A | 500 | $ 3.04 | |
| 500 | $ 3.04 | |||
| 500 | $ 3.04 | |||
| Win Source Electronics | N/A | 4 | $ 14.13 | |
| 9 | $ 11.60 | |||
| 14 | $ 11.23 | |||
| 19 | $ 10.87 | |||
| 24 | $ 10.51 | |||
| 32 | $ 9.42 | |||
LTC2950 Series
Push Button On/Off Controller
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Applications | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Current - Supply |
|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc LTC2950IDDB-2#TRMPBF | -40 °C | 85 °C | 8-DFN (3x2) | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | 8-WFDFN Exposed Pad | 6 µA |
Analog Devices Inc LTC2950IDDB-2#TRPBF | -40 °C | 85 °C | 8-DFN (3x2) | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | 8-WFDFN Exposed Pad | 6 µA |
Analog Devices Inc LTC2950CDDB-1#TRMPBF | 0 °C | 70 ░C | 8-DFN (3x2) | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | 8-WFDFN Exposed Pad | 6 µA |
Analog Devices Inc LTC2950CTS8-2#TRMPBF | 0 °C | 70 ░C | TSOT-23-8 | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | SOT-23-8 Thin, TSOT-23-8 | 6 µA |
Analog Devices Inc LTC2950ITS8-1#TRMPBF | -40 °C | 85 °C | TSOT-23-8 | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | SOT-23-8 Thin, TSOT-23-8 | 6 µA |
Analog Devices Inc LTC2950CDDB-1#TRPBF | 0 °C | 70 ░C | 8-DFN (3x2) | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | 8-WFDFN Exposed Pad | 6 µA |
Analog Devices Inc LTC2950IDDB-1#TRMPBF | -40 °C | 85 °C | 8-DFN (3x2) | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | 8-WFDFN Exposed Pad | 6 µA |
Analog Devices Inc LTC2950ITS8-2#TRMPBF | -40 °C | 85 °C | TSOT-23-8 | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | SOT-23-8 Thin, TSOT-23-8 | 6 µA |
Analog Devices Inc LTC2950CTS8-2#TRPBF | 0 °C | 70 ░C | TSOT-23-8 | On/Off Controller, Push Button | Surface Mount | 2.7 V | 26.4 V | SOT-23-8 Thin, TSOT-23-8 | 6 µA |
Description
General part information
LTC2950 Series
The LTC2950 is a micropower, wide input voltage range, pushbutton ON/OFF controller. The part contains a pushbutton input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to allow for proper system housekeeping prior to power down. Under system fault conditions, an internalKILLtimer ensures proper power down.The LTC2950 operates over a wide 2.7V to 26.4V input voltage range to accommodate a wide variety of input power supplies. Very low quiescent current (6μA typical) makes the LTC2950 ideally suited for battery powered applications. Two versions of the part are available to accommodate either positive or negative enable polarities. The parts are available in either 8-lead 3mm × 2mm DFN or ThinSOT packages.ApplicationsPortable Instrumentation MetersBlade ServersPortable Customer Service PDADesktop and Notebook Computers
