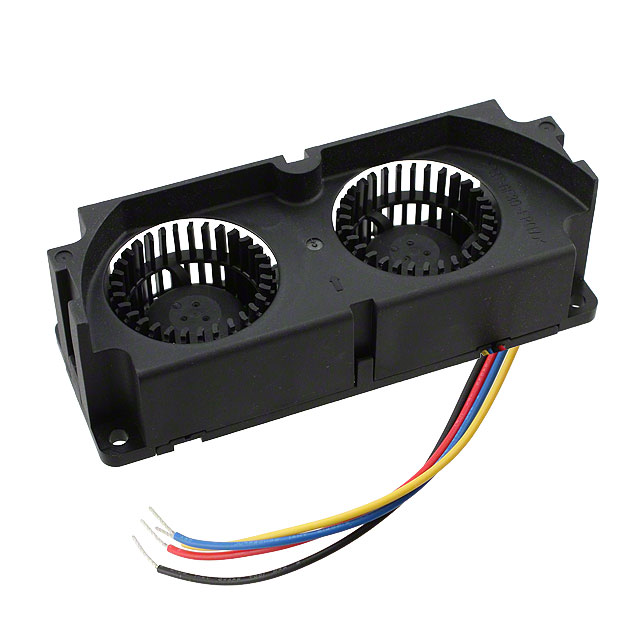

SFB0212HH-F00

Obsolete

Delta Electronics

FAN BLOWER CF 125X45MM 12VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER CF 125X45MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	SFB0212HH-F00

Air Flow	23.1 CFM
Air Flow	0.647 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.62 A
Fan Type	Blower, Centrifugal (Dual)
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	7.44 W
RPM	7000 RPM
Size / Dimension [x]	125 mm
Size / Dimension [y]	38 mm
Static Pressure	160.2 Pa
Static Pressure	0.643 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	5.5 VDC
Weight	121.11 g
Weight	0.267 lb
Width [x]	45 mm

FAN BLOWER CF 125X45MM 12VDC

Part	Bearing Type	Air Flow	Air Flow	Weight	Weight	Features	Static Pressure	Static Pressure	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Current Rating (Amps)	Width [x]	Material - Blade	Voltage - Rated	Termination	Voltage Range [Min]	Voltage Range [Max]	Noise	Power (Watts)	Approval Agency	Lifetime @ Temp.	Material - Frame
Delta Electronics SFB0212HH-F00	Ball	23.1 CFM	0.647 m³/min	121.11 g	0.267 lb	Locked Rotor Protection, Speed Sensor (Tach)	160.2 Pa	0.643 in H2O	7000 RPM	70 °C	70 °C	-10 °C	-10 °C	38 mm	125 mm	Blower, Centrifugal (Dual)	0.62 A	45 mm	Plastic	12 VDC	3 Wire Leads	5.5 VDC	13.8 VDC	52 dB	7.44 W	CE, CSA, UL, VDE	50000 Hrs	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower, Centrifugal (Dual) 12VDC Rectangular - 125mm L x 38mm H Ball 23.1 CFM (0.647m³/min) 3 Wire Leads
