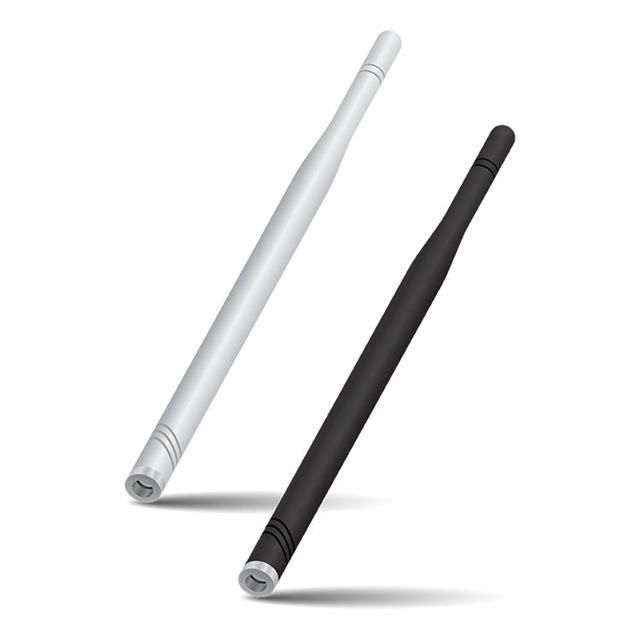

X9001376-4GDRMW

Active

KYOCERA AVX

ANTENNA, WHIP PENLT SMA STRAIGHT

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA, WHIP PENLT SMA STRAIGHT

Technical Specifications

Parameters and characteristics for this part

ANTENNA, WHIP PENLT SMA STRAIGHT

Part	Ingress Protection	Frequency (Center/Band)	Applications	Frequency Group [Min]	Frequency Group [Max]	Antenna Type	Gain	Return Loss	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Mounting Type	Termination
KYOCERA AVX X9001376-4GDRMW	IP67	2.2 GHz, 875 MHz	LoRa, LPWAN, LTE, Sigfox	2 GHz, 300 MHz	1 GHz, 3 GHz	Whip, Straight	1.16 dBi, 2.5 dBi	-7.33 dB, -3 dB	802.15.4, Cellular	2.69 GHz, 960 MHz	1.71 GHz, 790 MHz	180 mm	7.087 in	2	Connector Mount	RP-SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA LTE, LoRa, LPWAN, Sigfox Whip, Straight RP-SMA Connector Mount
