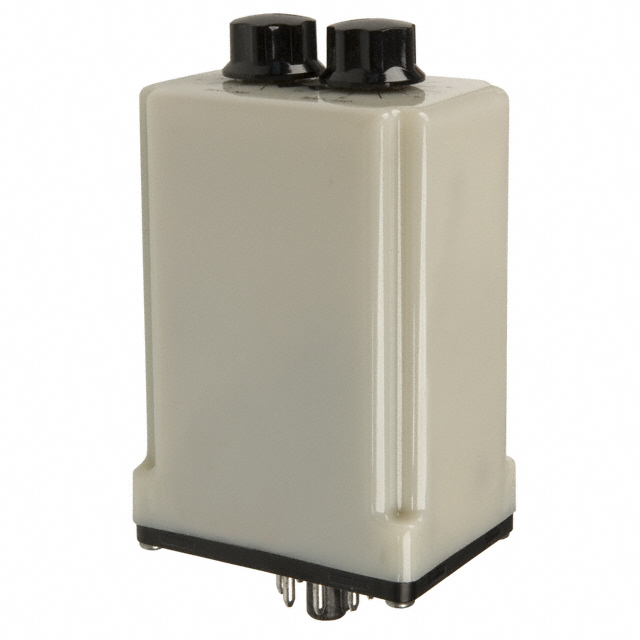

CRB-48-70060

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 60SEC 10A 277V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 60SEC 10A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	CRB-48-70060

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [custom]	277 VAC
Contact Rating @ Voltage [custom]	10 A
Delay Time [Max]	60 Sec
Delay Time [Min]	0.6 Sec
Function	Repeat Cycle, Twin Timer
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

Part	Function	Termination Style	Mounting Type	Circuit	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Voltage - Supply	Relay Type
TE Connectivity Potter & Brumfield Relays CRB-48-70030	Repeat Cycle Twin Timer	Plug In 8 Pin (Octal)	Socketable	DPDT (2 Form C)	Input Voltage	30 Sec	0.3 Sec	Hand Dial	277 VAC	10 A	120 VAC	Mechanical Relay
TE Connectivity Potter & Brumfield Relays CRB-48-70060	Repeat Cycle Twin Timer	Plug In 8 Pin (Octal)	Socketable	DPDT (2 Form C)	Input Voltage	60 Sec	0.6 Sec	Hand Dial	277 VAC	10 A	120 VAC	Mechanical Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Repeat Cycle, Twin Timer Time Delay Relay DPDT (2 Form C) 0.6 Sec ~ 60 Sec Delay 10A @ 277VAC Socketable
