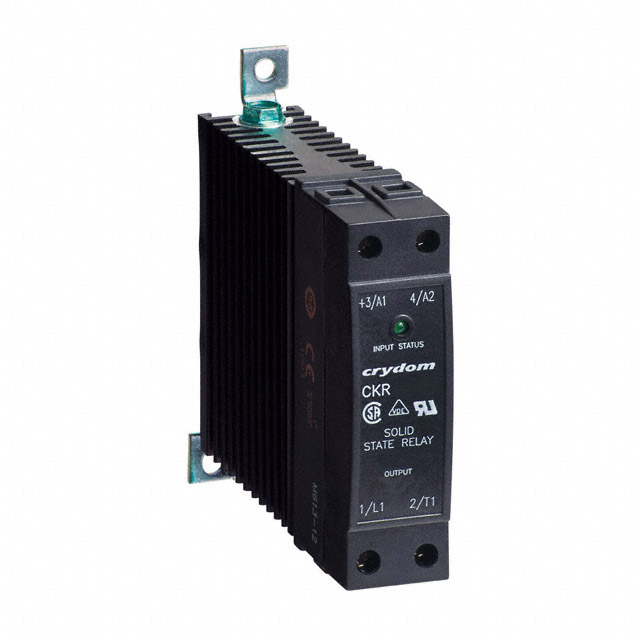

CKRD6030P

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 30A 48-660V

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 30A 48-660V

Technical Specifications

Parameters and characteristics for this part

Specification	CKRD6030P

Approval Agency	TUV, CSA, UR, CE
Load Current	30 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	660 V
Voltage - Load [Min]	48 V

Part	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Load Current	Approval Agency	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type
Sensata-Crydom CKRD6010-10	48 V	660 V	Screw Terminal	10 A	CE CSA TUV UR	SSR with Integrated Heat Sink	32 V	4 V	DIN Rail	-40 °C	80 C	AC
Sensata-Crydom CKRD6030	48 V	660 V	Screw Terminal	30 A	CE CSA TUV UR	SSR with Integrated Heat Sink	32 V	4 V	DIN Rail	-40 °C	80 C	AC Zero Cross
Sensata-Crydom CKRD6030P	48 V	660 V	Screw Terminal	30 A	CE CSA TUV UR	SSR with Integrated Heat Sink	32 V	4 V	DIN Rail	-40 °C	80 C	AC Zero Cross
