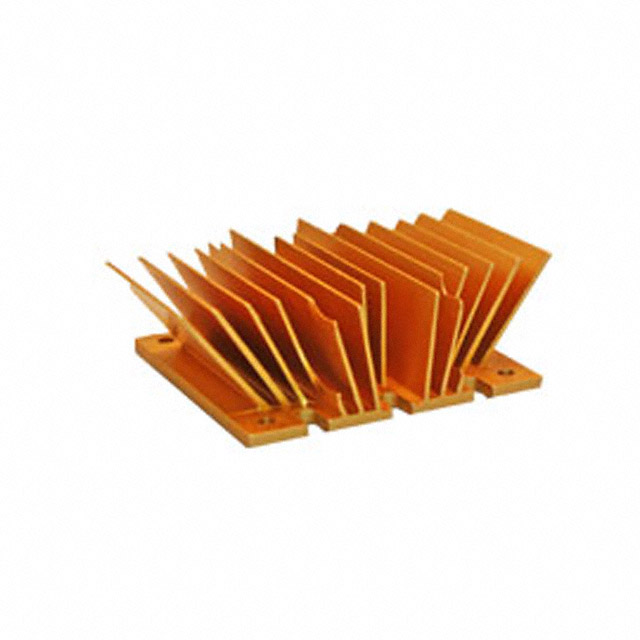

Heat Sinks maxiFLOW Power Brick Heat Sink, 1/4, Gold, T766, 37x58x22.9mm, 58mm dia.
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | ATS-1106-C1-R0 | ATS-110 Series |
|---|---|---|
| Attachment Method | Bolt On | Bolt On |
| Fin Height | 0.902 in | 0.24 - 0.902 in |
| Fin Height | 22.9 mm | 6.1 - 22.9 mm |
| Fin Height | - | 0.449 in |
| Fin Height | - | 11.4 mm |
| Length | 2.402 " | 2.402 - 4.598 " |
| Length | 61 mm | 61 - 116.8 mm |
| Material | Aluminum | Aluminum |
| Package Cooled | Half Brick DC/DC Converter | Half Brick DC/DC Converter, Full Brick DC/DC Converter |
| Shape | Rectangular, Angled Fins | Rectangular, Angled Fins |
| Thermal Resistance @ Forced Air Flow | 1.3 °C/W, 200 LFM | 1.3 - 200 °C/W |
| Type | Top Mount | Top Mount |
| Width | - | 2.401 in |
| Width | - | 61 mm |
| Width [y] | 59 mm | 59 mm |
| Width [y] | 2.323 in | 2.323 in |
Heat Sinks maxiFLOW Power Brick Heat Sink, 1/4, Gold, T766, 37x58x22.9mm, 58mm dia.
| Part | Package Cooled | Fin Height | Fin Height | Attachment Method | Thermal Resistance @ Forced Air Flow | Length | Length | Shape | Material | Width [y] | Width [y] | Type | Width [x] | Width [x] | Fin Height [z] | Fin Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advanced Thermal Solutions Inc. ATS-1106-C1-R0 | Half Brick DC/DC Converter | 0.902 in | 22.9 mm | Bolt On | 1.3 °C/W, 200 LFM | 2.402 " | 61 mm | Rectangular, Angled Fins | Aluminum | 59 mm | 2.323 in | Top Mount | ||||
Advanced Thermal Solutions Inc. ATS-1108-C1-R0 | Full Brick DC/DC Converter | 0.24 in | 6.1 mm | Bolt On | 9.4 °C/W | 4.598 in | 116.8 mm | Rectangular, Angled Fins | Aluminum | Top Mount | 2.401 in | 61 mm | ||||
Advanced Thermal Solutions Inc. ATS-1109-C1-R0 | Full Brick DC/DC Converter | Bolt On | 5.2 °C/W | 4.598 in | 116.8 mm | Rectangular, Angled Fins | Aluminum | Top Mount | 2.401 in | 61 mm | 0.449 in | 11.4 mm |
