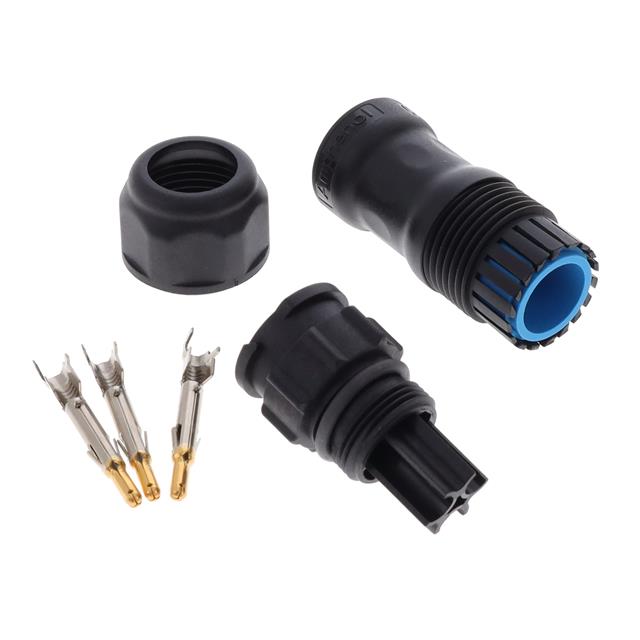

CC-03BMMA-QL8LPP
ActiveAmphenol LTW
X-LOK, MIDDLE SIZE, 20A, 03 PINS
Deep-Dive with AI
Search across all available documentation for this part.
CC-03BMMA-QL8LPP
ActiveAmphenol LTW
X-LOK, MIDDLE SIZE, 20A, 03 PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-03BMMA-QL8LPP |
|---|---|
| Cable Opening [custom] | 12 mm, 10 mm |
| Cable Opening [custom] | 0.394 in, 0.472 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | C |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.42 | |
| 10 | $ 8.00 | |||
| 25 | $ 7.23 | |||
| 50 | $ 6.71 | |||
| 100 | $ 6.24 | |||
| 250 | $ 5.68 | |||
| 500 | $ 5.60 | |||
Description
General part information
CC-03BMMA Series
3 (Data) Position Circular Connector Plug, Male Pins Screw
