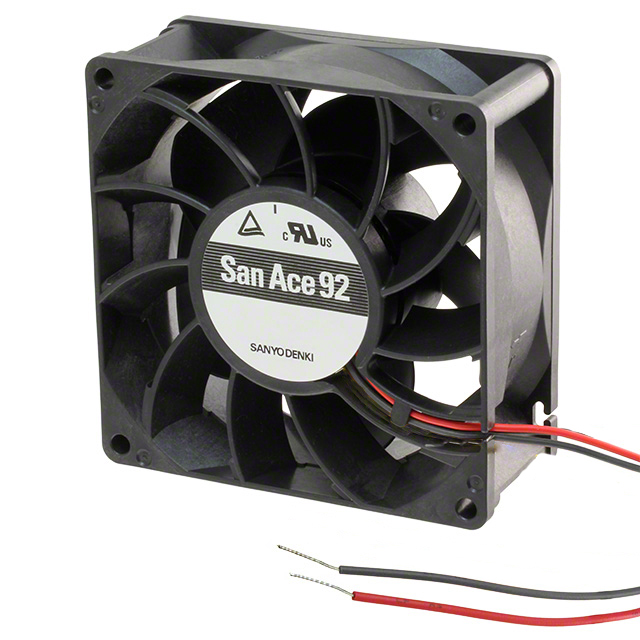

9S0924M402

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

9S0924M402

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9S0924M402

Air Flow	37.8 CFM
Air Flow	1.06 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	22 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.68 W
RPM	2250 RPM
Static Pressure	21.7 Pa
Static Pressure	0.087 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	25 mm

9S0924 Series

Part	Features	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Lifetime @ Temp.	Power (Watts)	Material - Blade	Weight	Weight	Bearing Type	Noise	Termination	Material - Frame	Voltage - Rated	RPM	Air Flow	Air Flow	Fan Type	Approval Agency	Static Pressure	Static Pressure
Sanyo Denki America Inc. 9S0924M4011	Locked Rotor Protection Speed Sensor (Tach)	25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	70 mA	40000 Hrs	1.68 W	Plastic	0.222 lb	100.7 g	Ball	22 dB(A)	3 Wire Leads	Plastic	24 VDC	2250 RPM	37.8 CFM	1.06 mł/min	Tubeaxial	CSA TUV UL	21.7 Pa	0.087 in H2O
Sanyo Denki America Inc. 9S0924F4021		25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	0.09 A	40000 Hrs	2.16 W	Plastic	0.222 lb	100.7 g	Ball	27 dB(A)	2 Wire Leads	Plastic	24 VDC	2650 RPM	44.5 CFM	1.25 mł/min	Tubeaxial	CSA TUV UL	29.9 Pa	0.12 in H2O
Sanyo Denki America Inc. 9S0924M4D01	Locked Rotor Sensor	25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	70 mA	40000 Hrs	1.68 W	Plastic	0.222 lb	100.7 g	Ball	22 dB(A)	3 Wire Leads	Plastic	24 VDC	2250 RPM	37.8 CFM	1.06 mł/min	Tubeaxial	CSA TUV UL	21.7 Pa	0.087 in H2O
Sanyo Denki America Inc. 9S0924F4D01	Locked Rotor Sensor	25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	0.09 A	40000 Hrs	2.16 W	Plastic	0.222 lb	100.7 g	Ball	27 dB(A)	3 Wire Leads	Plastic	24 VDC	2650 RPM	44.5 CFM	1.25 mł/min	Tubeaxial	CSA TUV UL	29.9 Pa	0.12 in H2O
Sanyo Denki America Inc. 9S0924L401	Locked Rotor Protection Speed Sensor (Tach)	25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	40 mA	40000 Hrs		Plastic	0.222 lb	100.7 g	Ball	17 dB	3 Wire Leads	Plastic	24 VDC	1750 RPM	29.3 CFM	0.82 m³/min	Tubeaxial	CSA TUV UL	13.2 Pa	0.053 in H2O
Sanyo Denki America Inc. 9S0924L4D01	Locked Rotor Sensor	25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	40 mA	40000 Hrs		Plastic	0.222 lb	100.7 g	Ball	17 dB	3 Wire Leads	Plastic	24 VDC	1750 RPM	29.3 CFM	0.82 m³/min	Tubeaxial	CSA TUV UL	13.2 Pa	0.053 in H2O
Sanyo Denki America Inc. 9S0924L4011	Locked Rotor Protection Speed Sensor (Tach)	25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	40 mA	40000 Hrs		Plastic	0.222 lb	100.7 g	Ball	17 dB	3 Wire Leads	Plastic	24 VDC	1750 RPM	29.3 CFM	0.82 m³/min	Tubeaxial	CSA TUV UL	13.2 Pa	0.053 in H2O
Sanyo Denki America Inc. 9S0924M402		25 mm	26.4 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	70 mA	40000 Hrs	1.68 W	Plastic	0.222 lb	100.7 g	Ball	22 dB(A)	2 Wire Leads	Plastic	24 VDC	2250 RPM	37.8 CFM	1.06 mł/min	Tubeaxial	CSA TUV UL	21.7 Pa	0.087 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.72
		10	$ 14.05
		28	$ 13.21
		56	$ 12.71
		112	$ 11.71
		252	$ 10.96
		504	$ 10.79

Description

General part information

9S0924 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 37.8 CFM (1.06mł/min) 2 Wire Leads
