5-6447163-2
ActiveTE Connectivity AMP Connectors

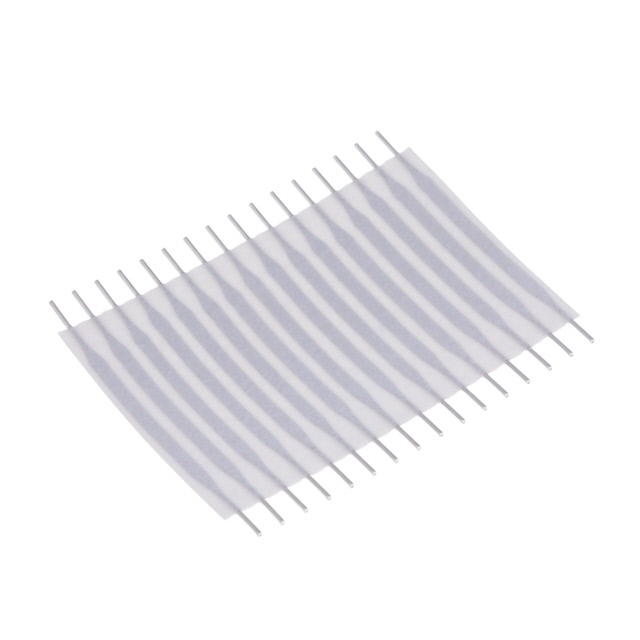

FFC JUMPER CABLE NOMEX 16CONDUCTORS 24AWG 300VAC
5-6447163-2
ActiveTE Connectivity AMP Connectors
FFC JUMPER CABLE NOMEX 16CONDUCTORS 24AWG 300VAC
Description
General part information
6447163 Series
Wire-to-Board, 16 Position, 2.54 mm [.1 in] Centerline, 25.4 mm [1 in] Length, Printed Circuit Board, Power & Signal, Wire-to-Board Jumpers & Shunts
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-6447163-2 |
|---|---|
| Cable Type | Flexstrip |
| Length | 25.4 mm |
| Length - Exposed Ends | 0.125 in |
| Number of Conductors | 16 |
| Pitch | 0.1 in |
| Termination Style | Completely Exposed Wires on Both Sides |
