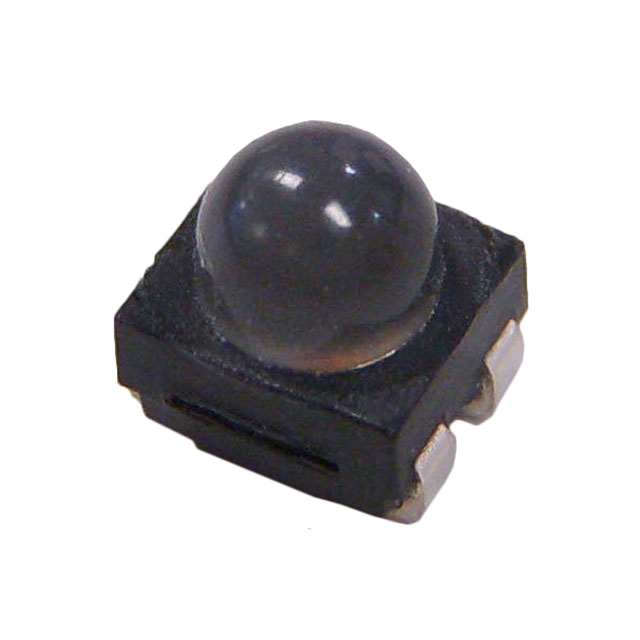

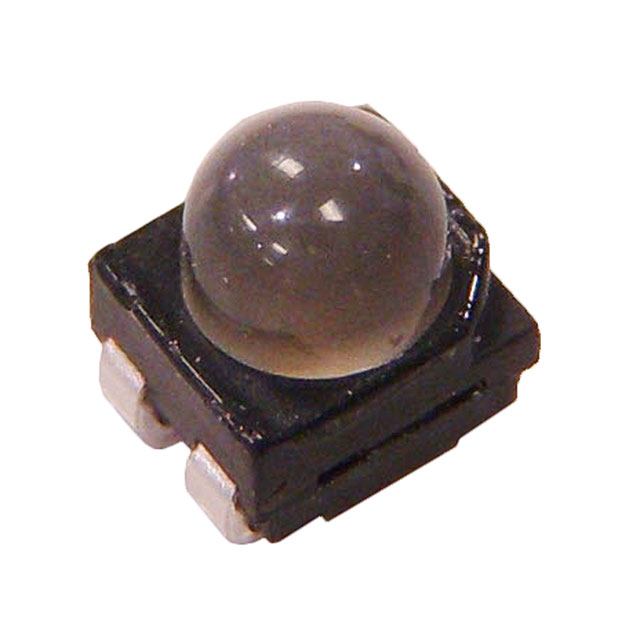

CLM2C Series

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Package / Case	Lens Style	Millicandela Rating	Size / Dimension Width	Size / Dimension Length	Lens Diameter	Current - Test	Height (Max)	Package Name	Color	Configuration	Mounting Type
CreeLED, Inc. CLM2C-GCA-CXBB07A3	3.2 V	530 nm	4-PLCC	Domed Top Round	5620 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Green	Standard	Surface Mount

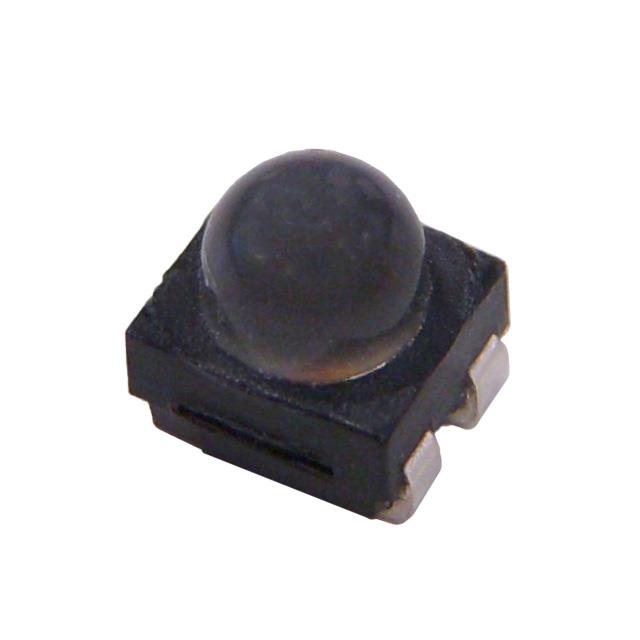

CreeLED, Inc. CLM2C-ACA-CYBA0343	2 V	590 nm	4-PLCC	Domed Top Round	5325 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Amber	Standard	Surface Mount

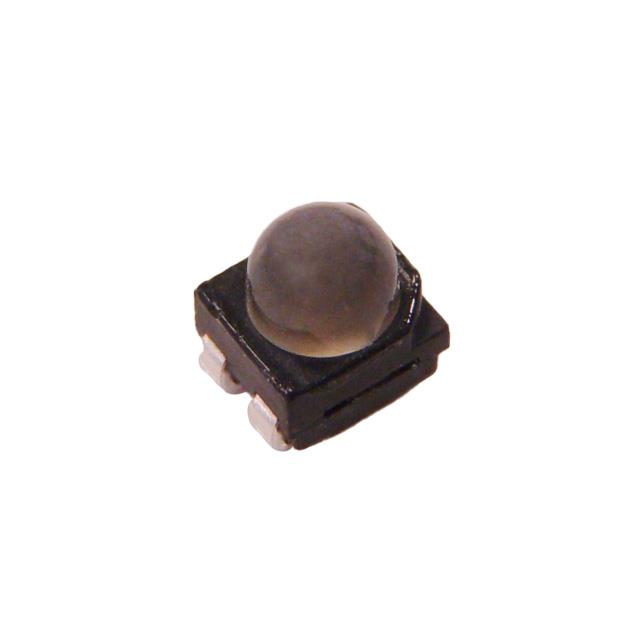

CreeLED, Inc. CLM2C-GCA-CYBB0793	3.2 V	528 nm	4-PLCC	Domed Top Round	6275 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Green	Standard	Surface Mount
CreeLED, Inc. CLM2C-ACA-CYAA0253	2 V	590 nm	4-PLCC	Domed Top Round	4950 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Amber	Standard	Surface Mount
CreeLED, Inc. CLM2C-RCA-CYAZ0BB3	2 V	622 nm	4-PLCC	Domed Top Round	4200 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Red	Standard	Surface Mount
CreeLED, Inc. CLM2C-ACA-CYAA0253	2 V	590 nm	4-PLCC	Domed Top Round	4950 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Amber	Standard	Surface Mount
CreeLED, Inc. CLM2C-RCA-CXBZ0BB3	2 V	622 nm	4-PLCC	Domed Top Round	3920 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Red	Standard	Surface Mount
CreeLED, Inc. CLM2C-RCA-CWBZ0BB3	2 V	622 nm	4-PLCC	Domed Top Round	3500 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Red	Standard	Surface Mount
CreeLED, Inc. CLM2C-BCA-CWAXB353	3.2 V	468 nm	4-PLCC	Domed Top Round	1960 mcd	2.8 mm	3.2 mm	2.45 mm	20 mA	3.86 mm	4-PLCC	Blue	Standard	Surface Mount
