General part information

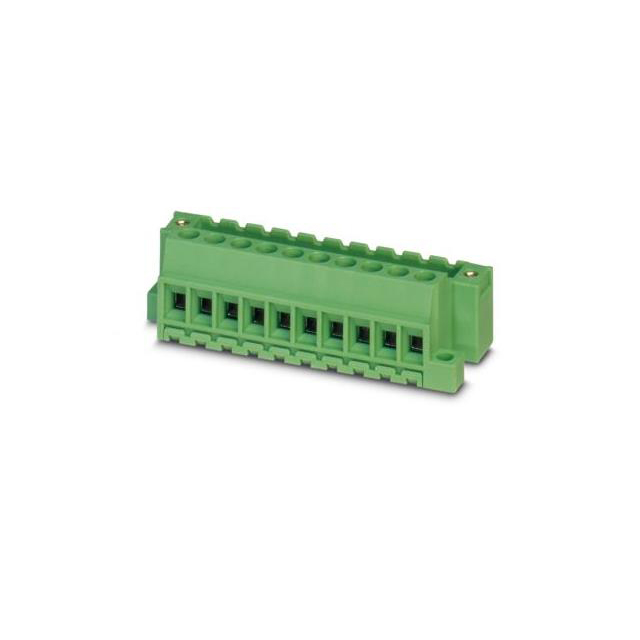

Pluggable Terminal Blocks 15 Pos 5.08mm pitch Box Header
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1788473 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 12 A |
| Current - UL | 10 A |
| Features | Mating and Mounting Flange |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 0.681 in |
| Insulation Height | 17.3 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Board Mount |
| Number of Levels | 1 |
| Number of Positions | 15 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 15 |
| Screw Size | M3 |
| Termination Style | Screw |
| Torque - Screw [Max] | 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm |
| Type | Receptacle, Male Pins |
| Voltage - IEC | 630 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
| Wire Strip Length | 7 mm |
Pluggable Terminal Blocks 15 Pos 5.08mm pitch Box Header
| Part | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Voltage - UL | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Color | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Current - UL | Wire Strip Length | Number of Positions | Material Flammability Rating | Insulation Height | Insulation Height | Positions Per Level | Number of Levels | Type | Housing Material | Screw Size | Features | Termination Style | Current - IEC | Pitch [x] | Pitch [x] | Contact Mating Finish | Voltage - IEC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1788473 | 0.6 Nm | 5.3 Lb-In | 4.4 Lb-In | 0.5 Nm | 300 V | 30 AWG | 12 AWG | Green | 0.2 mm² | 2.5 mm² | 10 A | 7 mm | 15 | UL94 V-0 | 0.681 in | 17.3 mm | 15 | 1 | Receptacle, Male Pins | Polyamide (PA), Nylon | M3 | Mating and Mounting Flange | Screw | 12 A | 0.2 in | 5.08 mm | Tin | 630 V | Board Mount |
