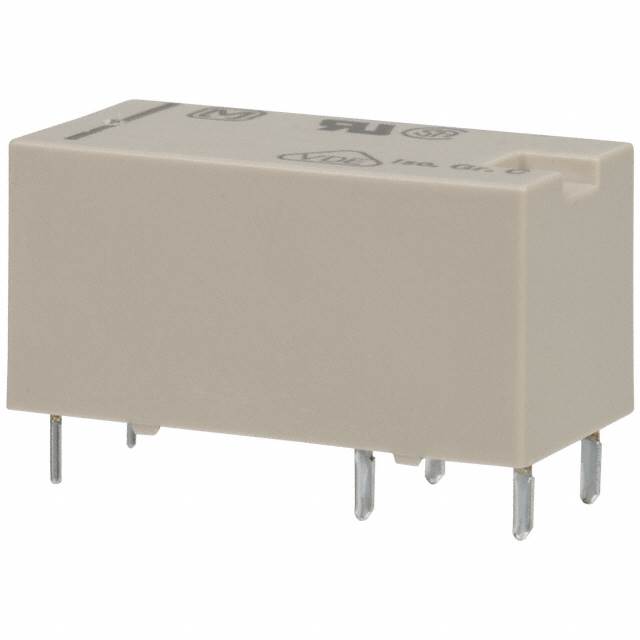

DE2A-4.5V
ActivePanasonic Electric Works
RELAY GEN PURPOSE DPST 8A 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
DE2A-4.5V
ActivePanasonic Electric Works
RELAY GEN PURPOSE DPST 8A 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DE2A-4.5V |
|---|---|
| Approval Agency | VDE, CSA, UR |
| Coil Current | 44.5 mA |
| Coil Resistance | 101 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4.5 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 2500 VA, 300 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.15 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 10.64 | |
Description
General part information
DE2A-4 Series
General Purpose Relay DPST-NO (2 Form A) 4.5VDC Coil Through Hole
