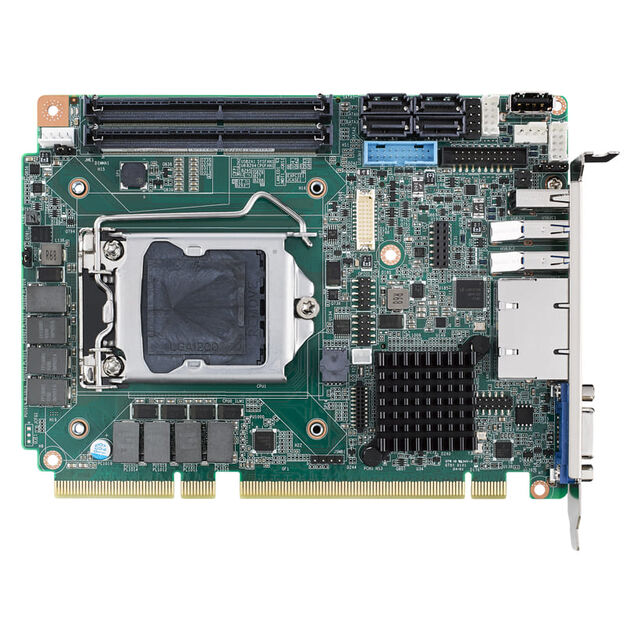

PCE-4132G2-00A1
ActiveAdvantech Corp
SBC 3.6GHZ 10 CORE 64GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
PCE-4132G2-00A1
ActiveAdvantech Corp
SBC 3.6GHZ 10 CORE 64GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCE-4132G2-00A1 |
|---|---|
| Cooling Type | Fan |
| Core Processor | Xeon W LGA1200, i5, Intel 10th Gen Core i9, i3, i7 |
| Digital I/O Lines | 8 |
| Ethernet | 1000 Mbps, 10 Mbps, 100 Mbps |
| Ethernet | RJ45 (2), GbE (2) |
| Expansion Site/Bus | PCIe, mPCIe, SPI, PCI |
| Number of Cores | 4, 6, 8, 10 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 0 GB, 64 GB |
| Size / Dimension [x] | 6.797 in |
| Size / Dimension [x] | 172.64 mm |
| Size / Dimension [y] | 4.976 in |
| Size / Dimension [y] | 126.39 mm |
| Speed | 3.1 GHz, 2 GHz, 2.3 GHz, 2.9 GHz, 3.6 GHz, 3.5 GHz, 2.4 GHz, 2.8 GHz, 1.8 GHz, 3.4 GHz |
| Storage Interface | SATA 3.0 (4) |
| USB | USB 2.0 (6), USB 3.2 (4) |
| Video Outputs | DVI-D, VGA, DP |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 734.00 | |
| 10 | $ 716.25 | |||
Description
General part information
PCE-4132 Series
Single Board Computer 1.8GHz, 2GHz, 2.3GHz, 2.4GHz, 2.8GHz, 2.9GHz, 3.1GHz, 3.4GHz, 3.5GHz, 3.6GHz 4/6/8/10 Core 64GB/0GB RAM Intel 10th Gen Core i9/i7/i5/i3/Xeon W LGA1200
Documents
Technical documentation and resources
No documents available
