1408349-1

Active

TE Connectivity AMP Connectors

CONN QMA JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QMA JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1408349-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms

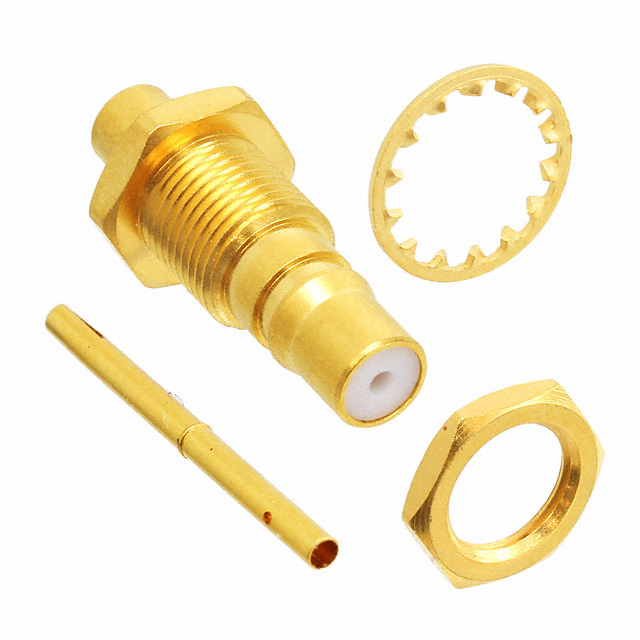

Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Insertion Loss	0.25 dB
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN QMA JACK STR 50 OHM SOLDER

Part	Housing Color	Body Finish	Contact Termination	Body Material	Dielectric Material	Voltage Rating	Center Contact Plating	Includes	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Fastening Type	Number of Ports	Frequency - Max [Max]	Insertion Loss	Connector Type	Impedance	Mounting Feature
TE Connectivity AMP Connectors 1408349-1	Gold	Gold	Solder	Brass	Polytetrafluoroethylene (PTFE)	335 V	Gold	1 Connector, 1 Contact, 1 Lockwasher, 1 Nut	Solder	-40 °C	80 C	Beryllium Copper	Snap-On	1	6000 MHz	0.25 dB	Female Socket, Jack	50 Ohms	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 11.91

General part information

QMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
