851-99-028-30-002000

Active

Mill-Max Manufacturing Corp.

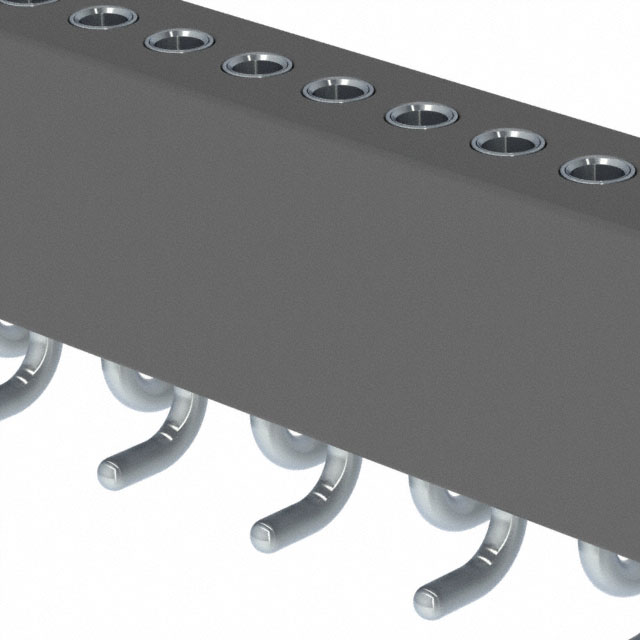

CONN RCPT 28P 0.05 TIN-LEAD SMD

Deep-Dive with AI

Search across all available documentation for this part.

851-99-028-30-002000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 28P 0.05 TIN-LEAD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	851-99-028-30-002000

Connector Type	Receptacle
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	3.78 mm
Insulation Height [z]	0.149 "
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

851-99 Series

...

Part	Pitch - Mating	Pitch - Mating	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Insulation Height	Insulation Height	Connector Type	Contact Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Color	Mounting Type	Termination	Contact Shape	Number of Positions	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Mill-Max Manufacturing Corp. 851-99-025-10-002000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.185 in	4.7 mm	Receptacle	Female Socket	Tin-Lead	2.92 mm	0.115 in	All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular
Mill-Max Manufacturing Corp. 851-99-044-30-001000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.207 in	5.25 mm	Receptacle	Female Socket	Tin-Lead			All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Surface Mount	Solder	Circular	44
Mill-Max Manufacturing Corp. 851-99-050-10-002000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.185 in	4.7 mm	Receptacle	Female Socket	Tin-Lead	2.92 mm	0.115 in	All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular	50
Mill-Max Manufacturing Corp. 851-99-006-10-001000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.161 in	4.1 mm	Receptacle	Female Socket	Tin-Lead	0.099 in		All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular	6	2.51 mm
Mill-Max Manufacturing Corp. 851-99-028-30-002000	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Push-Pull	2.54 çm	100 çin	Tin-Lead	Brass Alloy			Receptacle	Female Socket	Tin-Lead			All	200 µin	5.08 µm		1				Black	Surface Mount	Solder	Circular	28		3.78 mm	0.149 "
Mill-Max Manufacturing Corp. 851-99-023-10-001000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.161 in	4.1 mm	Receptacle	Female Socket	Tin-Lead	0.099 in		All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular	23	2.51 mm
Mill-Max Manufacturing Corp. 851-99-062-10-002000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.185 in	4.7 mm	Receptacle	Female Socket	Tin-Lead	2.92 mm	0.115 in	All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular	62
Mill-Max Manufacturing Corp. 851-99-028-10-001000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.161 in	4.1 mm	Receptacle	Female Socket	Tin-Lead	0.099 in		All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular	28	2.51 mm
Mill-Max Manufacturing Corp. 851-99-046-10-001000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.161 in	4.1 mm	Receptacle	Female Socket	Tin-Lead	0.099 in		All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Through Hole	Solder	Circular	46	2.51 mm
Mill-Max Manufacturing Corp. 851-99-030-30-001000	0.05 in	1.27 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	2.54 çm	100 çin	Tin-Lead	Beryllium Copper	0.207 in	5.25 mm	Receptacle	Female Socket	Tin-Lead			All	200 µin	5.08 µm	UL94 V-0	1	-55 °C	125 °C	3 A	Black	Surface Mount	Solder	Circular	30

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 18.03

Description

General part information

851-99 Series

28 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Tin-Lead

Documents

Technical documentation and resources

No documents available
