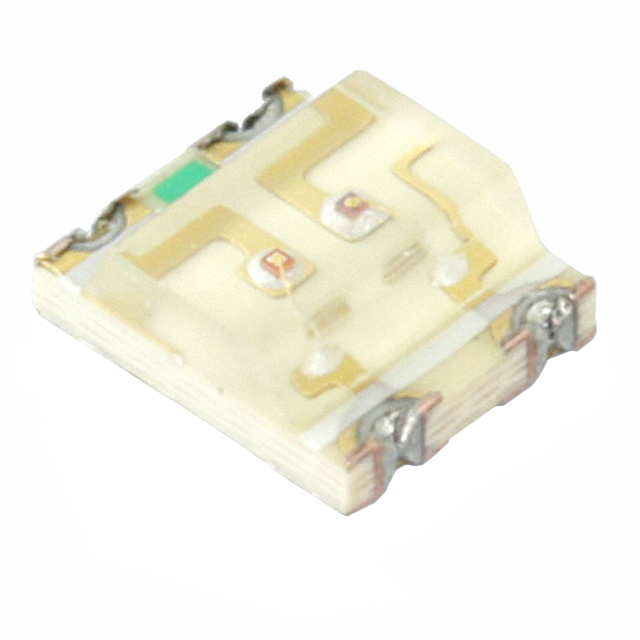

Specification	APB3025YSGC-F01

Color	Yellow, Green
Configuration	Independent
Current - Test	20 mA
Current - Test (Green)	20 mA
Current - Test Colors	Green, Yellow
Height (Max)	1.1 mm
Lens Color	Colorless
Lens Length	2 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	2.5 mm
Millicandela Rating (Green)	15 mcd
Millicandela Rating (Yellow)	10 mcd
Millicandela Rating Colors	Green, Yellow
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Package Name	4-SMD
Size / Dimension Length	3 mm
Size / Dimension Width	2.5 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Value 1)	2.2 V
Voltage - Forward (Vf) (Typ) (Value 2)	2.1 V
Voltage - Forward (Vf) (Typ) Color	Yellow, Green
Wavelength - Dominant (Green)	568 nm
Wavelength - Dominant (Primary)	568 nm
Wavelength - Dominant (Secondary)	588 nm
Wavelength - Dominant (Yellow)	588 nm
Wavelength - Dominant Color	Yellow, Green
Wavelength - Peak (Green)	565 nm
Wavelength - Peak (Yellow)	590 nm
Wavelength - Peak Colors	Yellow, Green

APB3025 Series

Part	Wavelength - Dominant Color	Wavelength - Dominant (Orange)	Wavelength - Dominant (Green)	Lens Transparency	Lens Style	Configuration	Package Name	Viewing Angle	Lens Length	Lens Width	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ) Options	Color	Wavelength - Peak Colors	Wavelength - Peak (Orange)	Wavelength - Peak (Green)	Current - Test Colors	Current - Test (Orange)	Current - Test (Green)	Millicandela Rating Colors	Millicandela Rating (Orange)	Millicandela Rating (Green)	Mounting Type	Package / Case	Height (Max)	Lens Color	Millicandela Rating (Red)	Wavelength - Dominant (Red)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Current - Test (Red)	Wavelength - Peak (Red)	Wavelength - Peak (Yellow)	Wavelength - Dominant (Secondary)	Wavelength - Dominant (Primary)	Millicandela Rating (Yellow)	Current - Test	Voltage - Forward (Vf) (Typ) (Value 2)	Voltage - Forward (Vf) (Typ) (Value 1)	Wavelength - Dominant (Yellow)	Voltage - Forward (Vf) (Typ) (Yellow)	Wavelength - Dominant
Kingbright APB3025SEKCGKC-F01	Green Orange	605 nm	570 nm	Clear	Flat Top Rectangle	Independent	SMD	160 °	2.5 mm	1.5 mm	3 mm	2.5 mm	2.1V Green 2.1V Orange	Green Orange	Green Orange	610 nm	574 nm	Green Orange	20 mA	20 mA	Green Orange	300 mcd	60 mcd	Surface Mount	1210 (3225 Metric)	1.1 mm	Colorless
Kingbright APB3025ESGC-F01	Green Red		568 nm	Clear	Flat Top Rectangle	Independent	4-SMD	120 °	2 mm	2.5 mm	3 mm	2.5 mm		Green Red	Green Red		565 nm	Green Red		20 mA	Green Red		15 mcd	Surface Mount	4-SMD No Lead	1.1 mm	Colorless	8 mcd	617 nm	2 V	Green Red	2.2 V	20 mA	627 nm
Kingbright APB3025ESGC	Green Red		568 nm	Clear	Flat Top Rectangle	Independent	SMD	120 °	2 mm	2.5 mm	3 mm	2.5 mm		Green Red	Green Red		565 nm	Green Red		20 mA	Green Red		12 mcd	Surface Mount	4-SMD No Lead	1.1 mm	Colorless	12 mcd	625 nm	2 V	Green Red	2.2 V	20 mA	627 nm
Kingbright APB3025EYC-F01				Clear	Flat Top Rectangle	Independent	4-SMD	120 °	2 mm	2.5 mm	3 mm	2.5 mm		Red Yellow	Red Yellow			Red Yellow			Red Yellow			Surface Mount	4-SMD No Lead	1.1 mm	Colorless	8 mcd					20 mA	627 nm	590 nm	588 nm	617 nm	10 mcd	20 mA	2.1 V	2 V
Kingbright APB3025SURKCGKC-F01	Green Red		570 nm	Clear	Flat Top Rectangle	Independent	4-SMD	160 °	2 mm	2.5 mm	3 mm	2.5 mm		Green Red	Green Red		574 nm	Green Red		20 mA	Green Red		60 mcd	Surface Mount	4-SMD No Lead	1.1 mm	Colorless	70 mcd	630 nm	1.95 V	Green Red	2.1 V	20 mA	645 nm
Kingbright APB3025YSGC-F01	Green Yellow		568 nm	Clear	Flat Top Rectangle	Independent	4-SMD	120 °	2 mm	2.5 mm	3 mm	2.5 mm		Green Yellow	Green Yellow		565 nm	Green Yellow		20 mA	Green Yellow		15 mcd	Surface Mount	4-SMD No Lead	1.1 mm	Colorless				Green Yellow				590 nm	588 nm	568 nm	10 mcd	20 mA	2.1 V	2.2 V	588 nm
Kingbright APB3025SYKCGKC-F01	Green Yellow		570 nm	Clear	Flat Top Rectangle	Independent	SMD	160 °	2.5 mm	1.5 mm	3 mm	2.5 mm		Green Yellow	Green Yellow		574 nm	Green Yellow		20 mA	Green Yellow		60 mcd	Surface Mount	1210 (3225 Metric)	1.1 mm	Colorless				Green Yellow	2.1 V			590 nm	590 nm	570 nm	120 mcd	20 mA	2 V	2.1 V	590 nm	2 V	570nm Green 590nm Yellow
