153260-2020-RB

Active

80000903924 153260-2020-RB=60/2MM/BMSKT/SMT/THRU-BRD/PEGS/30U/ROHS

Search across all available documentation for this part.

Active

80000903924 153260-2020-RB=60/2MM/BMSKT/SMT/THRU-BRD/PEGS/30U/ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	153260-2020-RB	153260 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Height	0.129 in	0.129 in
Insulation Height	3.28 mm	3.28 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	60	60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN RCPT 60POS 0.079 GOLD SMD

Part	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Features	Contact Material	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Type	Voltage Rating	Contact Finish - Post	Number of Positions	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Shape	Fastening Type
3M 153260-2020-TB	0.079 in	2 mm	All	Board Guide	Copper Alloy	Gold	0.129 in	3.28 mm	Black	Female Socket	500 V	Tin-Lead	60	Board to Board, Cable	30 Áin	0.76 Ám	Solder	2	105 ░C	-55 °C	UL94 V-0	Surface Mount	0.079 in	2 mm	Receptacle, Bottom or Top Entry	Square	Push-Pull
3M 153260-2000-TB	0.079 in	2 mm	All		Copper Alloy	Gold	0.129 in	3.28 mm	Black	Female Socket	500 V	Tin-Lead	60	Board to Board, Cable	30 Áin	0.76 Ám	Solder	2	105 ░C	-55 °C	UL94 V-0	Surface Mount	0.079 in	2 mm	Receptacle, Bottom or Top Entry	Square	Push-Pull
3M 153260-2020-RB	0.079 in	2 mm	All	Board Guide	Copper Alloy	Gold	0.129 in	3.28 mm	Black	Female Socket	500 V	Tin	60	Board to Board, Cable	30 Áin	0.76 Ám	Solder	2	105 ░C	-55 °C	UL94 V-0	Surface Mount	0.079 in	2 mm	Receptacle, Bottom or Top Entry	Square	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	560	$ 5.28
Newark	Each	500	$ 6.05
		1000	$ 5.68

General part information

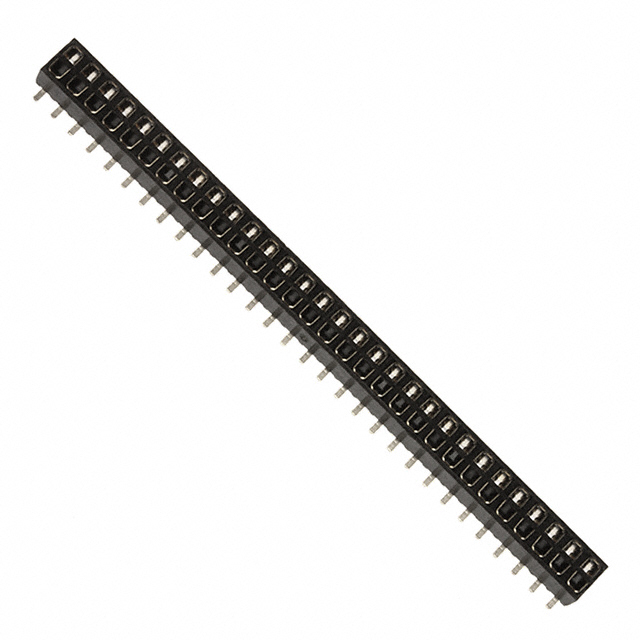

60 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
