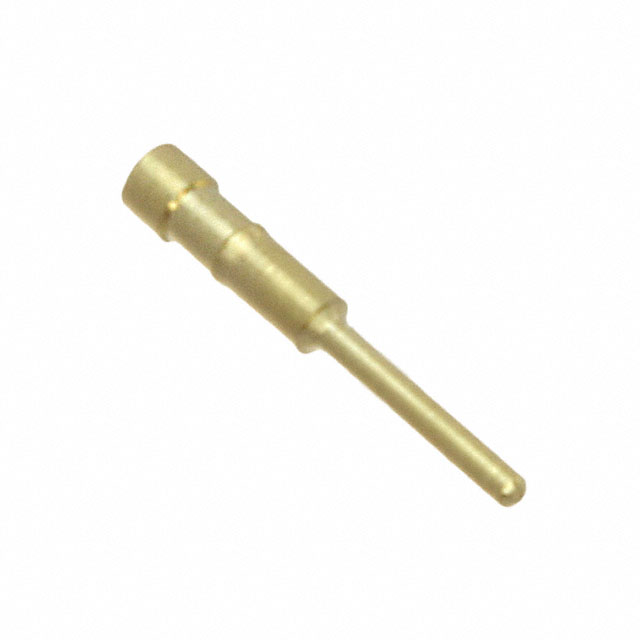

0439-0-15-15-04-27-04-4
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPin Receptacles (metric)
0439-0-15-15-04-27-04-4
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
DocumentsPin Receptacles (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0439-0-15-15-04-27-04-4 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.029 in |
| Flange Diameter [diameter] | 0.74 mm |
| Length - Overall | 25.4 mm |
| Length - Overall [x] | 1 in |
| Mounting Hole Diameter [diameter] | 0.64 mm |
| Mounting Hole Diameter [diameter] | 0.025 " |
| Socket Depth | 0.055 in |
| Socket Depth | 1.4 mm |
| Tail Diameter [diameter] | 0.014 in |
| Tail Diameter [diameter] | 0.36 mm |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.80 | |||
| 2500 | $ 0.73 | |||
Description
General part information
0439-0 Series
Pin Receptacle Connector 0.008" ~ 0.013" (0.20mm ~ 0.33mm) Standard Tail Press-Fit
