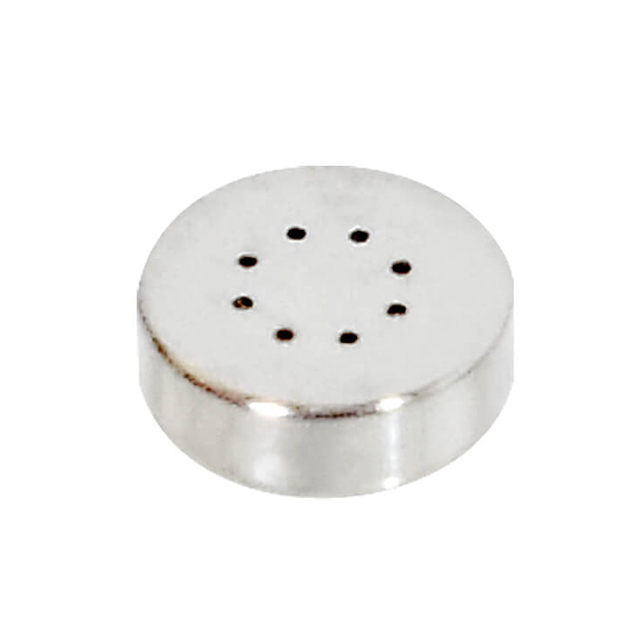

CMEJ-0413-42-SMT-TR
ActiveCUI Devices
MIC COND ANLG OMNI -42DB 0.157"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMEJ-0413-42-SMT-TR
ActiveCUI Devices
MIC COND ANLG OMNI -42DB 0.157"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMEJ-0413-42-SMT-TR |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 1.5 mm |
| Height (Max) [Max] | 0.059 in |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [diameter] | 0.157 in |
| Termination | Surface Mount |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.50 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.50 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.35 | |||
| Tape & Reel (TR) | 4000 | $ 0.35 | ||
| 8000 | $ 0.30 | |||
Description
General part information
CMEJ-0413 Series
100 Hz ~ 10 kHz Analog Microphone Electret Condenser Omnidirectional (-42dB ±3dB @ 94dB SPL) Surface Mount
