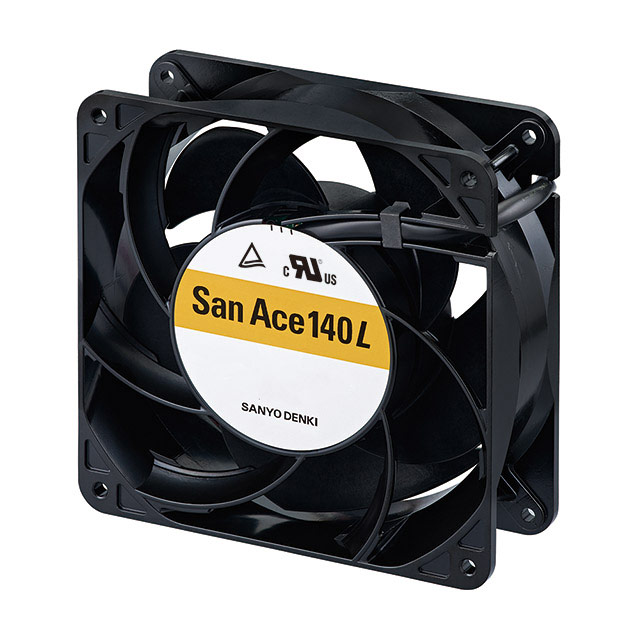

Specification	9LG1448P1M001

Air Flow	130 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating	150 mA
Fan Type	Tubeaxial
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	180000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	46 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	7.2 W
RPM	3300 RPM
Size / Dimension Height	140 mm
Size / Dimension Length	140 mm
Size / Dimension Shape	Square
Static Pressure	0.68 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Voltage Range (Max)	55.2 VDC
Voltage Range (Min)	40.8 VDC
Weight	1.4 lbs
Width	38 mm

9LG1448 Series

Part	Weight	Air Flow	Power (Watts)	Voltage - Rated	Features	Noise	Static Pressure	Fan Type	Bearing Type	Operating Temperature (Min)	Operating Temperature (Max)	Width	Approval Agency	Termination Leads Count	Termination Type	Termination	RPM	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Lifetime	Material - Blade
Sanyo Denki America Inc. 9LG1448P1M001	1.4 lbs	130 CFM	7.2 W	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	46 dB	0.68 in H2O	Tubeaxial	Ball	-4 °F	158 °F	38 mm	cURus TUV	4 leads	Wire Leads	4 Wire Leads	3300 RPM	140 mm	Square	140 mm	150 mA	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic
Sanyo Denki America Inc. 9LG1448P5G001	1.8 lbs	318 CFM	62 W	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	69 dB	2.63 in H2O	Tubeaxial	Ball	-4 °F	158 °F	51 mm	cURus TUV	4 leads	Wire Leads	4 Wire Leads	7500 RPM	140 mm	Square	140 mm	1.29 A	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic
Sanyo Denki America Inc. 9LG1448H5D001	1.8 lbs	173 CFM	14.9 W	48 VDC	Locked Rotor Sensor		1.04 in H2O	Tubeaxial	Ball	-4 °F	158 °F	51 mm	cURus TUV	3	Wire Leads	3 Wire Leads	4100 RPM	140 mm	Square	140 mm	0.31 A	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic
Sanyo Denki America Inc. 9LG1448H5002	1.8 lbs	173 CFM	14.9 W	48 VDC	Locked Rotor Protection		1.04 in H2O	Tubeaxial	Ball	-4 °F	158 °F	51 mm	cURus TUV	2 leads	Wire Leads	2 Wire Leads	4100 RPM	140 mm	Square	140 mm	0.31 A	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic
Sanyo Denki America Inc. 9LG1448P5S001	1.8 lbs	212 CFM	22 W	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	57 dB	1.18 in H2O	Tubeaxial	Ball	-4 °F	158 °F	51 mm	cURus TUV	4 leads	Wire Leads	4 Wire Leads	5000 RPM	140 mm	Square	140 mm	0.45 A	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic
Sanyo Denki America Inc. 9LG1448A5001	1.8 lbs	243.7 CFM	31.7 W	48 VDC	Locked Rotor Protection Speed Sensor (Tach)		2.17 in H2O	Tubeaxial	Ball	-4 °F	158 °F	51 mm	cURus TUV	3	Wire Leads	3 Wire Leads	5700 RPM	140 mm	Square	140 mm	660 mA	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic
Sanyo Denki America Inc. 9LG1448H5001	1.8 lbs	173 CFM	14.9 W	48 VDC	Locked Rotor Protection Speed Sensor (Tach)		1.04 in H2O	Tubeaxial	Ball	-4 °F	158 °F	51 mm	cURus TUV	3	Wire Leads	3 Wire Leads	4100 RPM	140 mm	Square	140 mm	0.31 A	55.2 VDC	40.8 VDC	Aluminum	180000 Hrs	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

9LG1448P1M001.pdf

Numbering System Long Life Fan

Rotor Balancing

Handling Instructions for Fan Motors
