R117186807

Active

Radiall USA, Inc.

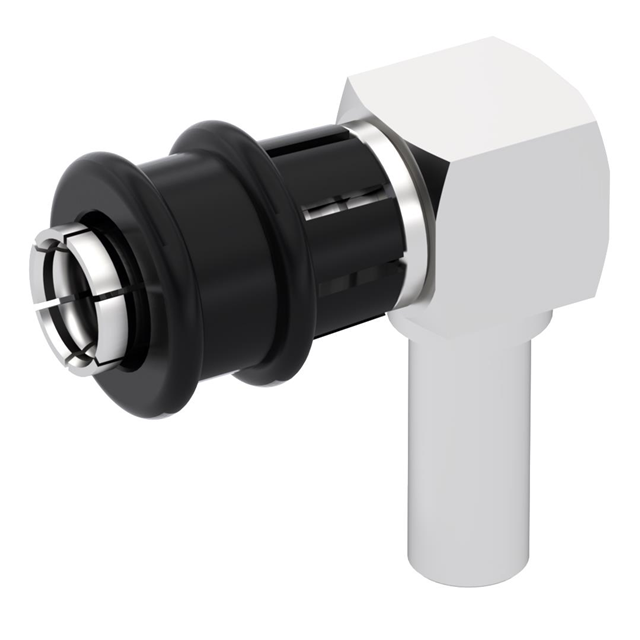

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R117186807

Body Finish	White Bronze
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	335 V

Part	Body Finish	Center Contact Plating	Number of Ports	Shield Termination	Body Material	Dielectric Material	Impedance	Connector Type	Mating Cycles	Mounting Type	Center Contact Material	Voltage Rating	Housing Color	Fastening Type	Contact Termination	Frequency - Max [Max]	Cable Group	Connector Style
Radiall USA, Inc. R117186807W	White Bronze	Gold	1	Crimp	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Female Socket Plug	500	Free Hanging (In-Line) Right Angle	Beryllium Copper	335 V	Silver	Snap-On	Crimp	4 GHz	316 RG-188	SMB
Radiall USA, Inc. R117186807	White Bronze	Gold	1	Crimp	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Female Socket Plug	500	Free Hanging (In-Line) Right Angle	Beryllium Copper	335 V	Silver	Snap-On	Crimp	4 GHz	316 RG-188	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 47.28

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
