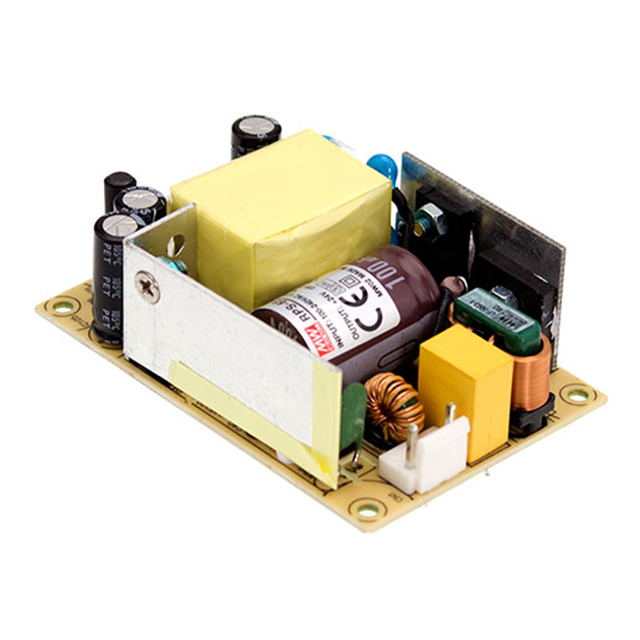

RPS-45-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 46W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPS-45-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 46W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPS-45-12 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 3.8 A |
| Efficiency | 88 % |
| Features | Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 46 W |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 24 mm |
| Size / Dimension [z] | 24.13 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.34 | |
| 5 | $ 17.28 | |||
| 10 | $ 16.84 | |||
| 25 | $ 16.28 | |||
Description
General part information
RPS-45 Series
Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
