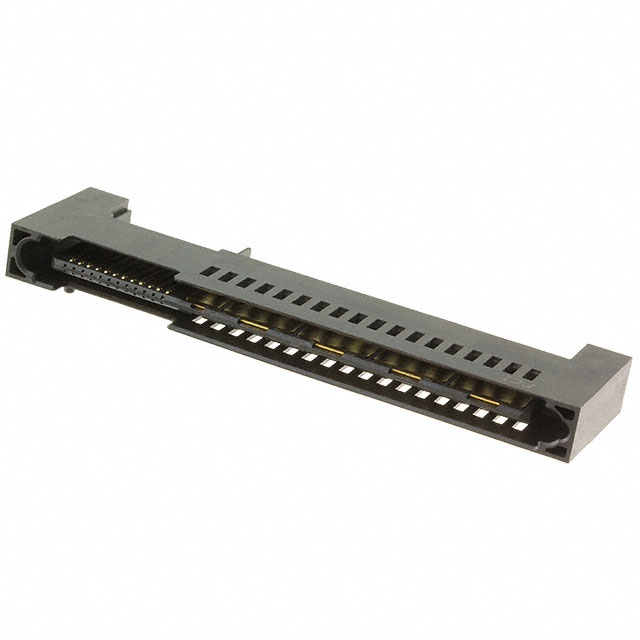

10119040-11000LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL MALE 60POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10119040-11000LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL MALE 60POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10119040-11000LF |
|---|---|
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | GXT™, Gold or Gold |
| Contact Material | Copper Alloy |
| Features | Board Lock, Mating Guide |
| Gender | Male |
| Material - Insulation | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 60 |
| Number of Positions [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 288 | $ 12.98 | |
Description
General part information
10119040 Series
60 (24 + 36 Power) Position Male Connector Non Specified - Dual Edge Gold or Gold, GXT™ 0.100" (2.54mm) Black
