794542-4
ObsoleteTE Connectivity AMP Connectors

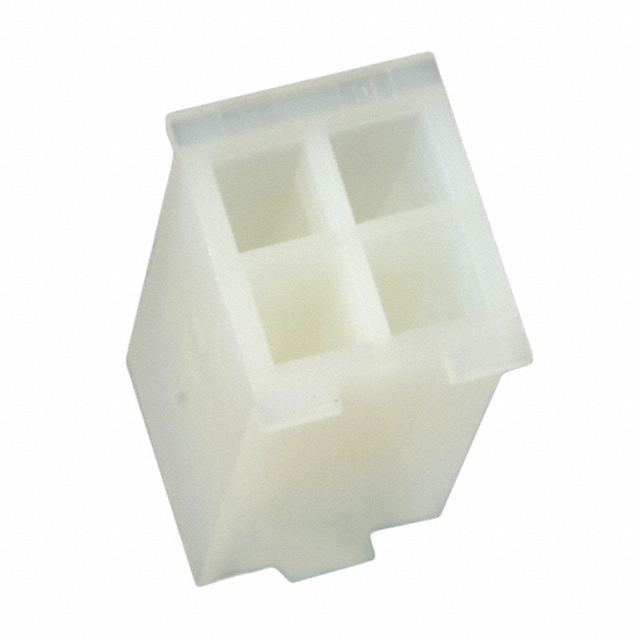

CONN PLUG HSG 4POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794542-4
ObsoleteTE Connectivity AMP Connectors
CONN PLUG HSG 4POS 4.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794542-4 | 794542 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 2 - 24 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 4.2 mm | 4.2 mm |
| Pitch [x] | 0.165 in | 0.165 in |
| Row Spacing | 4.2 mm | 4.2 mm |
| Row Spacing | 0.165 in | 0.165 in |
794542 Series
CONN PLUG HSG 24POS 4.20MM
| Part | Mounting Type | Row Spacing | Row Spacing | Contact Termination | Color | Note | Contact Type | Number of Rows | Fastening Type | Number of Positions | Pitch [x] | Pitch [x] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-794542-4 | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | Male Pin | 2 | Locking Ramp | 24 | 4.2 mm | 0.165 in | Plug |
TE Connectivity AMP Connectors 794542-4 | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | Male Pin | 2 | Locking Ramp | 4 | 4.2 mm | 0.165 in | Plug |
TE Connectivity AMP Connectors 794542-2 | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | Male Pin | 2 | Locking Ramp | 2 | Plug | ||
TE Connectivity AMP Connectors 1-794542-2 | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | Male Pin | 2 | Locking Ramp | 12 | 4.2 mm | 0.165 in | Plug |
TE Connectivity AMP Connectors 2-794542-0 | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | Male Pin | 2 | Locking Ramp | 20 | 4.2 mm | 0.165 in | Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794542 Series
4 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)
